DampMaster Compact Plus

The DampMaster Compact Plus is ideal for determining moisture levels quickly. The measuring instrument provides information about the moisture and dryness levels of the material. High measuring accuracy can be achieved thanks to material-specific measurements. All relevant information is shown simultaneously on the easy-to-read display. The measured data can easily be transferred using the Digital Connection interface.

Fast and precise measurement of wood and building moisture

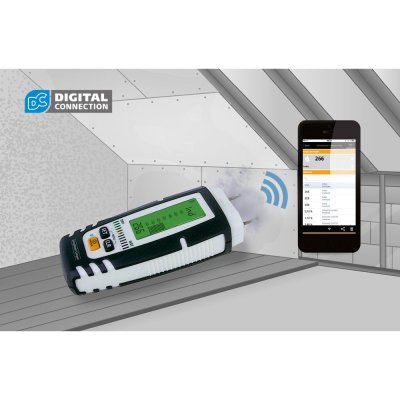

Simple transfer of measured data through Digital Connection interface to mobile phone for MeasureNote app
High measuring accuracy thanks to selectable material groups and material-specific measurements

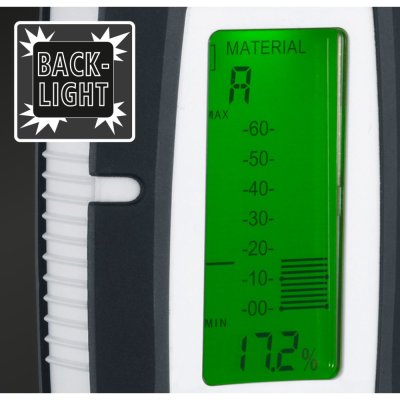

Practical simultaneous display of all relevant information on a clearly arranged display

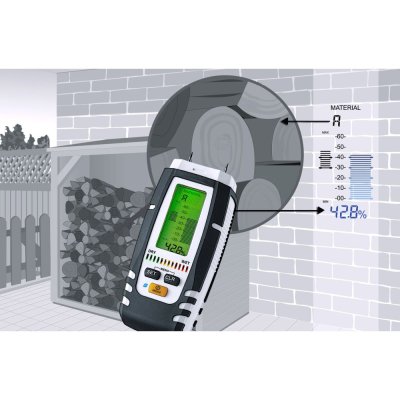

Quick localisation of moisture using comparative measurements

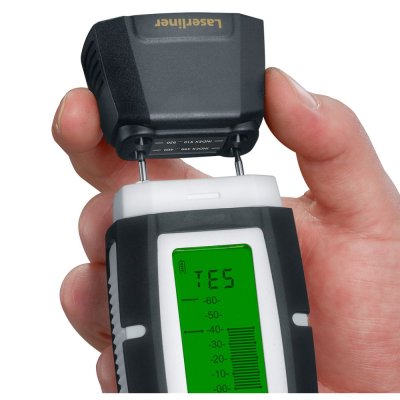

Simple testing of the measuring instrument using reference measurement through the protective cap
Automatic and manual temperature compensation: measuring device adapted to temperature of material to be measured
Measuring spikes can be replaced
Auto power off

Auto-hold✅
Data transfer✅
Min/Max✅
Wet/dry indicator✅
Ambient temperature✅
Universal index✅
Calibration test✅
Alarm✅

Measured Variable
Moisture content of material (resistive)
Ambient temperature
Mode
Wood (3 groups)
Building materials (8 materials)
Index
Test
Measuring Range Ambient Temperature
-10°C ... 50°C
Accuracy Ambient Temperature
± 2°C

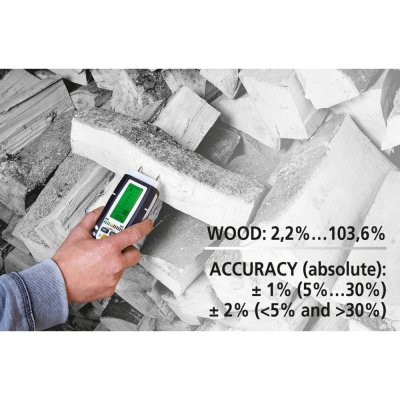

Measuring Range Wood
Wood group A: 4.6% … 91.6%
Wood group B: 6.1% … 103.6%
Wood group C: 3.0% … 79.2%
Accuracy (Absolute) Wood
± 1% (5% … 30%)
± 2% (<5% and >30%)
Measuring Range Building Materials
Anhydrite screed (AE, AFE): 0% … 29.5%
Concrete C12/15: 0.7% … 3.3%
Concrete C20/C25: 1.1% … 3.9%
Concrete C30/C37: 1.4% … 3.7%
Gypsum plaster: 0.1% … 38%
Limestone, bulk density 1.9: 0.8% … 12.7%
Cellular concrete (Hebel): 2.2% ... 171.2%
Cement screed without additive: 1.0% … 4.5%
Accuracy (Absolute) Building Materials
± 0.15%
Power Supply
3 x 1.5V LR03 (AAA)

Scope of delivery: DampMaster Compact Plus
protective cap with self-test function
batteries
carrying case
