DampMaster Compact Pro

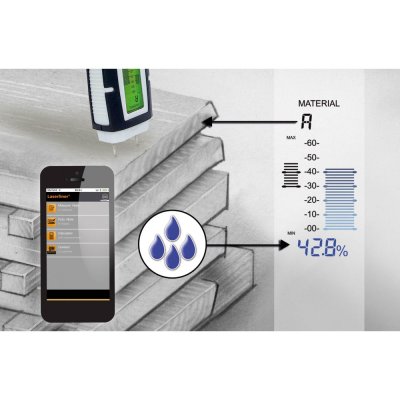

This professional material moisture measuring device with deep-insertion electrodes is used to detect wood and construction moisture. Precise, specific measurements can be taken by selecting various wood and building materials. The wet/dry indicator has twelve coloured LEDs and provides immediate information on the degree of moisture or dryness in the material under inspection. The index mode provides quick localisation of moisture using comparative measurements. Measure data can be easily transferred to a smartphone via the Digital Connection interface.

Fast and precise measurement of wood and building moisture
High measuring accuracy thanks to selectable material groups and material-specific measurements

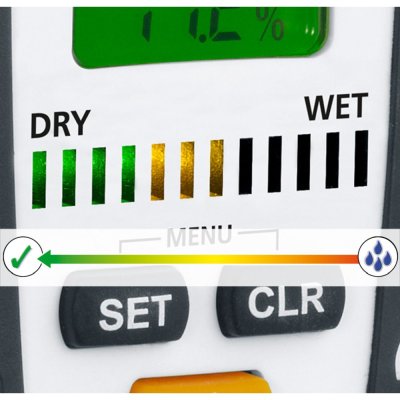

Immediate information on the degree of moisture or dryness of the measured material on an LED display
Quick localisation of moisture using comparative measurements
Simple transfer of measured data through Digital Connection interface to mobile phone

Auto-hold✅
Data transfer✅
Min/Max✅
Wet/dry indicator✅
Ambient temperature✅
Universal index✅
Calibration test✅
Alarm✅

Measured Variable
Moisture content of material (resistive)
Ambient temperature
Mode
Wood (3 groups)
Building materials (8 materials)
Index
Test
Measuring Range Ambient Temperature
-10°C ... 50°C
Accuracy Ambient Temperature
± 2°C

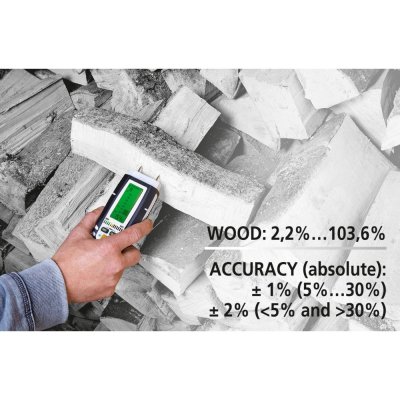

Measuring Range Wood
Wood group A: 4.6% … 91.6%
Wood group B: 6.1% … 103.6%
Wood group C: 3.0% … 79.2%
Accuracy (Absolute) Wood
± 1% (5% … 30%)
± 2% (<5% and >30%)
Measuring Range Building Materials
Anhydrite screed (AE, AFE): 0% … 29.5%
Concrete C12/15: 0.7% … 3.3%
Concrete C20/C25: 1.1% … 3.9%
Concrete C30/C37: 1.4% … 3.7%
Gypsum plaster: 0.1% … 38%
Limestone, bulk density 1.9: 0.8% … 12.7%
Cellular concrete (Hebel): 2.2% ... 171.2%
Cement screed without additive: 1.0% … 4.5%
Accuracy (Absolute) Building Materials
± 0.15%
Power Supply
2 x 1.5V LR03 (AAA)

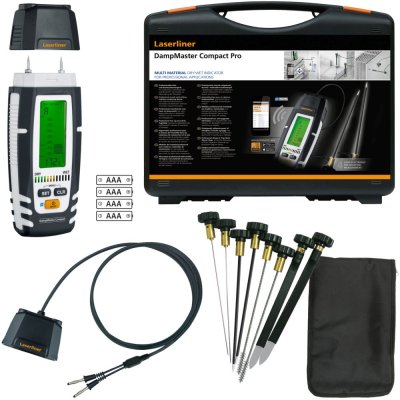

Scope of delivery: DampMaster Compact Plus

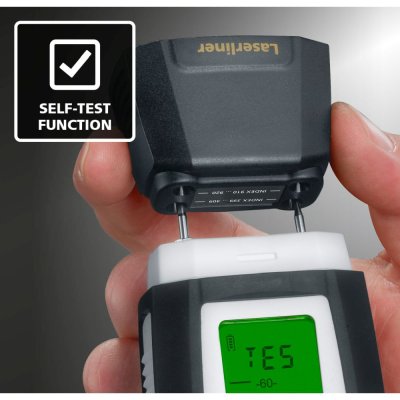

protective cap with self-test function

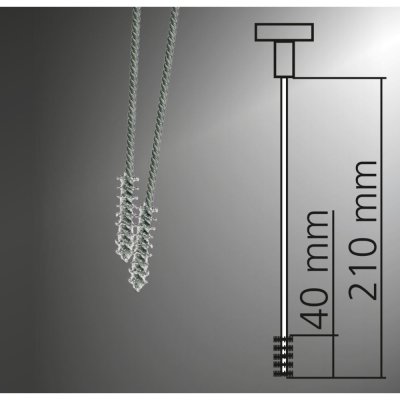

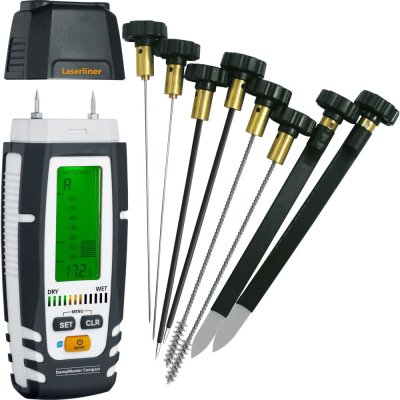

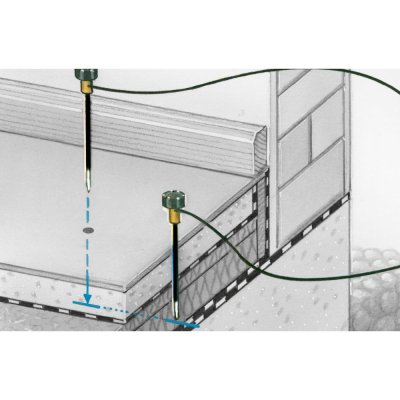

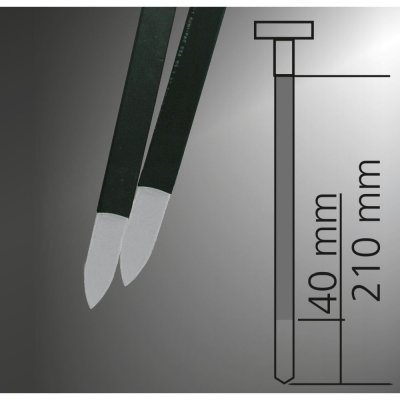

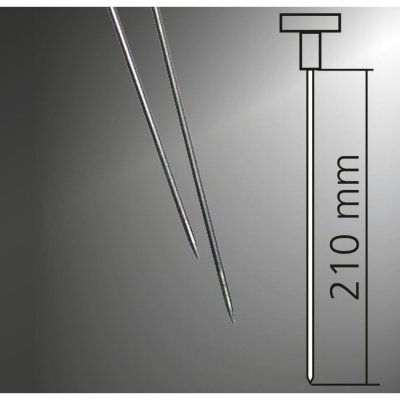

DeepElectrodes Compact with ExtensionCable
batteries
carrying case
