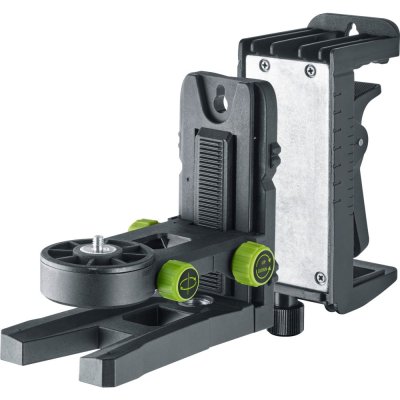

CrossGrip Plus ขายึดเลเซอร์แม่เหล็กปรับละเอียด

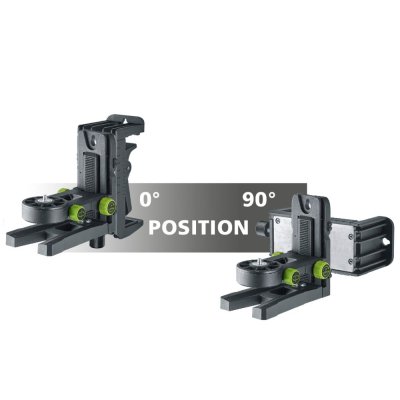

All lasers with a 1/4” thread can be positioned with this clamp and wall bracket or securely attached to metallic surfaces or ceiling profiles. The bracket can be adapted to many different profile depths using the adjusting screw and provides precise height adjustment. Changing the position of the two magnetic retaining elements allows the device to be attached to horizontal and vertical objects, such as pipework. Extremely handy vernier adjustment mechanism to ensure the laser lines are precisely aligned with edges. The integral 5/8” thread is perfect for use with construction site tripods.

Magnetic clamp and wall bracket for hanging, horizontal and vertical clamping to profiles, and attaching to metallic surfaces
Optimum use of cross-line lasers in indoor finishing work

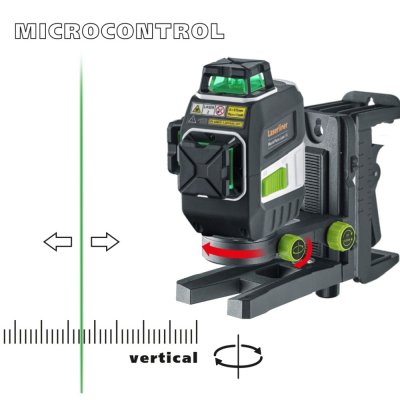

MicroControl: Vernier adjustment mechanism for precise vertical adjustment of the laser lines to edges and adjusting screw to adapt the bracket to different profile thicknesses
Precise adjustment to working height
For all laser measuring devices with 1/4" thread
5/8” thread makes it perfect for attaching to construction site tripods

Material
Polymer
Max. Load Capacity
700 g
Tripod Connection
5/8" thread
Operating Conditions
-10°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, #
Storage Conditions
-20°C … 70°C, Luftfeuchtigkeit max. 85% rH
Dimensions (W x H x D)
220 mm x 175 mm x 94 mm
Weight
741 g #

Scope of delivery: CrossGrip Plus
