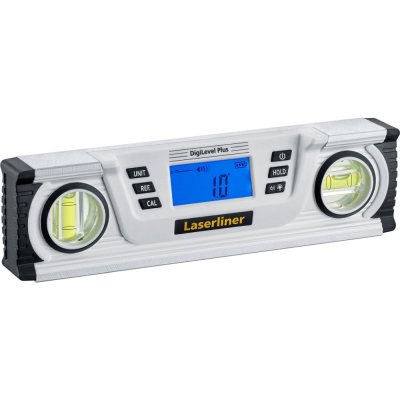

DigiLevel Plus 25 เครื่องวัดระดับน้ำอิเล็กทรอนิกส์

This digital spirit level provides accurate horizontal and vertical alignment as well as transfer of angles. Easy to use due to flip display and acoustic guidance. The magnetic bracket offers the benefit of hands-free working on metal constructions. High measuring accuracy is available due to the calibration function. The units of measurement can be selected on the device which also has milled measuring surfaces.

Precise horizontal and vertical angle display
Reference function for transferring angles

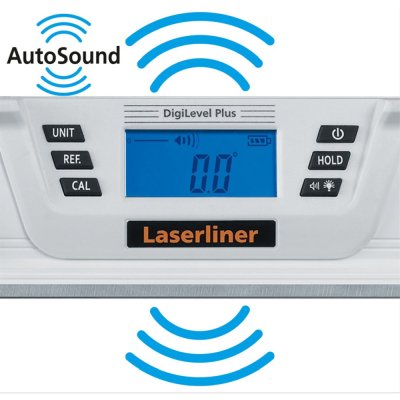

Acoustic guidance with 3 different signal tones
Comfortable overhead measurements thanks to flip display
Calibration: permanent accuracy via reverse measurement

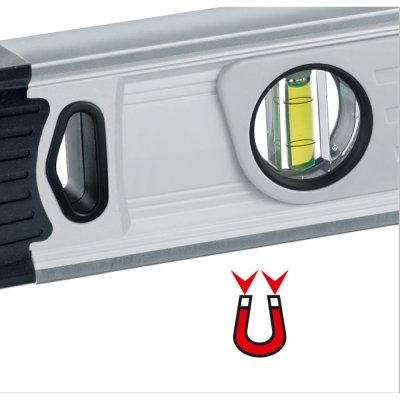

Free hands when working on metal constructions thanks to magnetic holder
Measurement units can be switched
Easy-to-read display
Vertical and horizontal vial
Milled measuring surfaces

Slope transfer (ref. mode)
✅
Angle display
✅
Digital 360° slope measurement
✅
90°/45°/0° signal
✅
Overhead measurement (flip display)
✅
Vial Accuracy
±1 mm/m
Electronic Measuring Precision
± 0.1° at 0° … 1°
± 0.1° at 89° … 90°
± 0.2° at 1° … 89°
Measurement Range Angle Measurement
360°
Display Accuracy
1 decimal place
Display Accuracy 0° - 1°
1 decimal place
Display Accuracy 1° - 90°
1 decimal place
Power Supply
2 x 1.5V LR03 (AAA)
Operating Conditions
0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull)
Storage Conditions
-20°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
240 mm x 66 mm x 30 mm
Weight
315 g (inkl. Batterien)

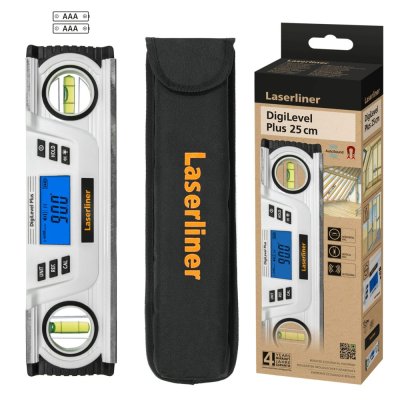

Scope of delivery: DigiLevel Plus 25
batteries
softbag
