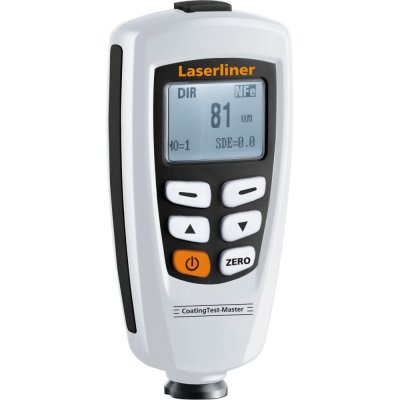

CoatingTest-Master

This point precise coating thickness measuring instrument is suitable for insulating and non-magnetic coatings on non-ferrous metals. The base material is identified automatically (ferrous/ferromagnetic, non-ferrous/non-ferromagnetic). The device features one-point or two-point calibration to increase the measuring accuracy. 400 measured values can be saved to the internal memory and transferred to a PC via the USB interface for further analysis.

Point precise coating thickness measurement based on induction and eddy current principle

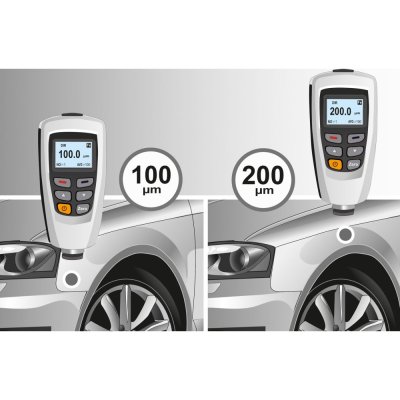

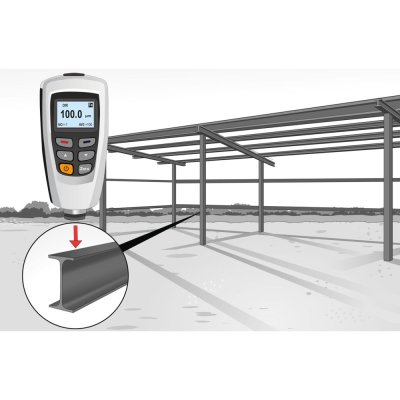

Measurable coatings: non-magnetic (paint, zinc on steel) and insulating (paint, anodised coatings)
Automatic identification of base material (ferrous/ferromagnetic, non-ferrous/non-ferromagnetic)
Comprehensive data backup due to internal memory for 400 measured values
Increased measuring accuracy due to one-point and two-point calibration
USB interface for analysis on PC
Min/Max/AVG display

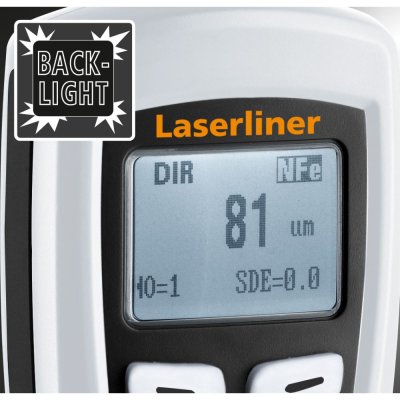

Easy-to-read display

Coating thickness
✅
Ferrous and non-ferrous
✅
Single and continuous measurement
✅
Mean value
✅
Standard deviation
✅
Zero adjustment
✅
User calibration
✅
Data transfer
✅
Measured Variable
Coating thickness
Mode
Measurement principle manual / automatic
Single / continuous measurement mode
Direct measurement / group measurement
Coating Thickness Measuring Range
0 … 1250 µm
Coating Thickness Accuracy
0 … 850 µm (± (3% +1 μm))
850 … 1250 μm (± 5%)

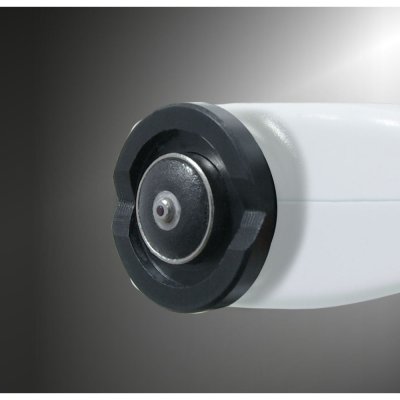

Sensor Type
Magnetic-inductive (Fe), eddy current (NFe)
Port
USB
Memory
80 measurements / mode
Power Supply
2 x 1.5V LR03 (AAA)
Dimensions (W x H x D)
23 mm x 110 mm x 50 mm x #
Weight
116 g

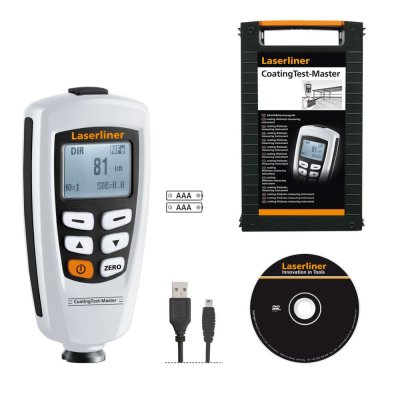

Scope of delivery: CoatingTest-Master
calibration references
Software
USB cable
batteries
carrying case
