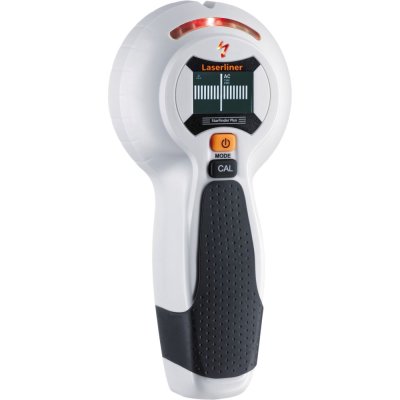

StarFinder Plus

 This electronic detector detects the precise position of live conductors, wall beams and joists. It informs the user by means of an exact LCD] bar display, which also registers very minor position changes and movements of the device. Drilling errors and expensive repairs can thus be avoided. Stable points for hanging items and areas without supporting structures, for example for clear passage, can be identified in drywall constructions The permanent voltage warning protects against unshielded, live conductors when drilling. The housing of the detector is made from a large proportion of recycled plastic and makes a valuable contribution to sustainability.

Sustainable design: large proportion of the housing is made from recycled plastic
Optimum preparation for drilling work

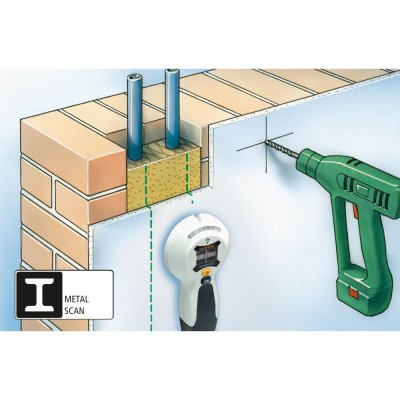

Effective location of metal, wall and cross beams, as well as live cables

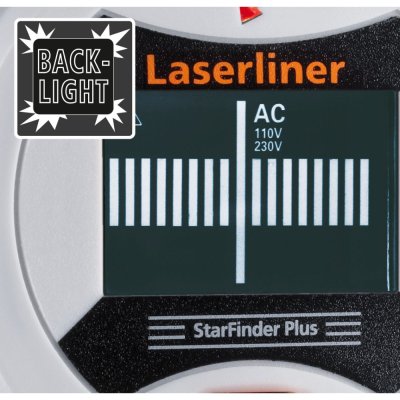

Exact LCD bar display detects even slight position changes
Avoidance of unnecessary drilling

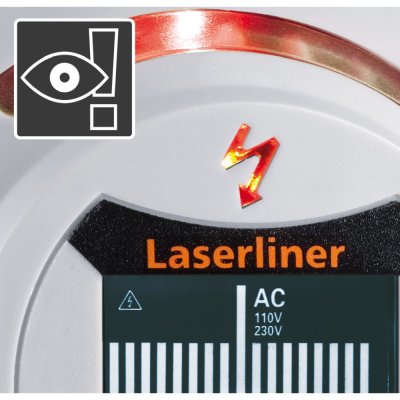

High level of safety through permanent voltage warning

Operating instructions
✅

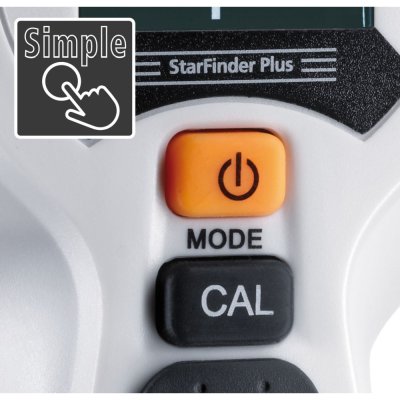

Autocalibration
✅

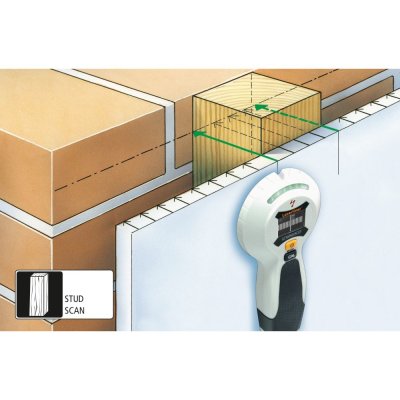

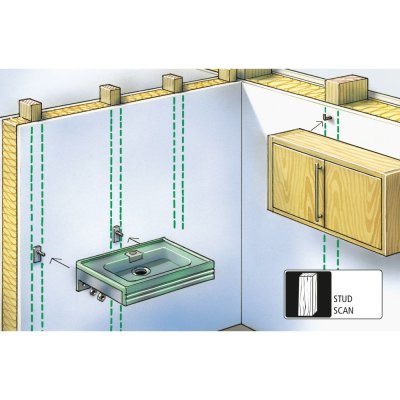

Identify supporting structures (metal/wood)
✅

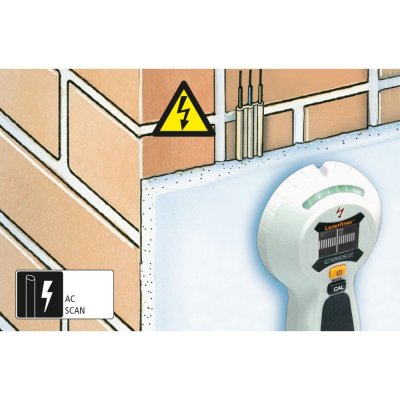

Locate live wires
✅
Warning for 230 V wires
✅

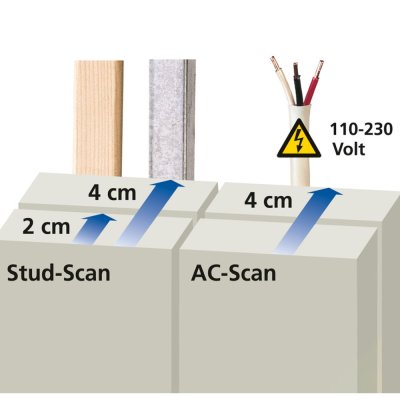

Measuring Depth
Wood / metal beam location (STUD-SCAN): up to 4 cm depth
Targeted location of live supply lines (AC-SCAN): up to 4 cm depth
Detection Range AC
110 - 230V, 50 - 60 Hz

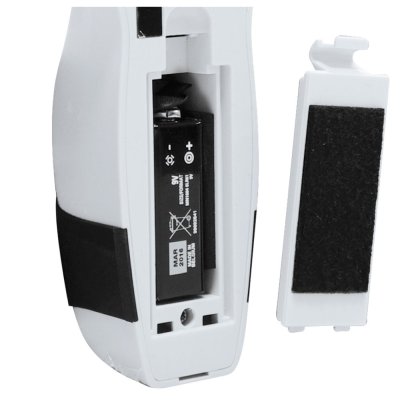

Power Supply
1 x 9V 6LR61 (9V block)
Operating Time
approx. 7 hours
Operating Conditions
0°C … 40°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull)
Storage Conditions
-20°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
85 mm x 180 mm x 38 mm
Weight
163 g (inkl. Batterie)

Scope of delivery: StarFinder Plus
battery
