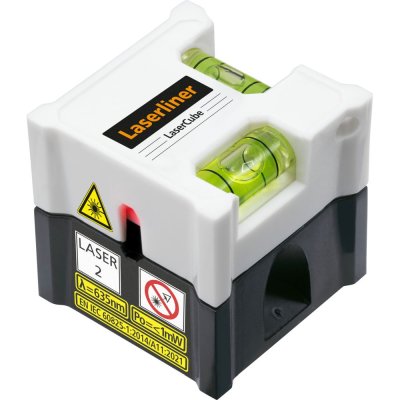

LaserCube เลเซอร์งานก่อสร้าง

This handy line laser is ideal for quick alignment work on the floor and on the wall. The device can be easily aligned using a vertical and horizontal spirit level and can also be used as a laser spirit level. Special pins are used for secure, damage-free fastening. A bright, highly visible laser and the compact design make it easy to use. The housing is largely made of recycled plastic and makes a valuable contribution to sustainability.

Sustainable design: large proportion of the housing is made from recycled plastic

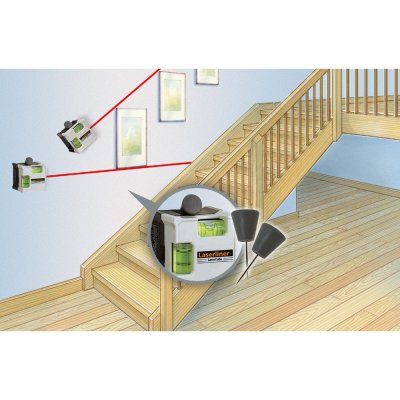

Accurate horizontal and vertical alignment of objects

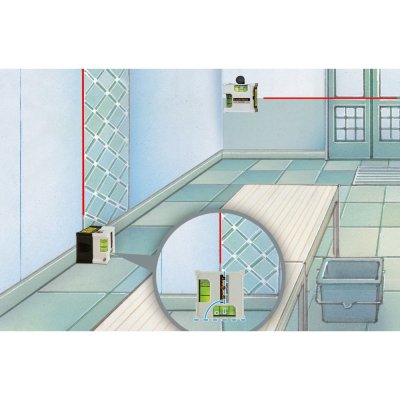

Suitable for use on floors and walls

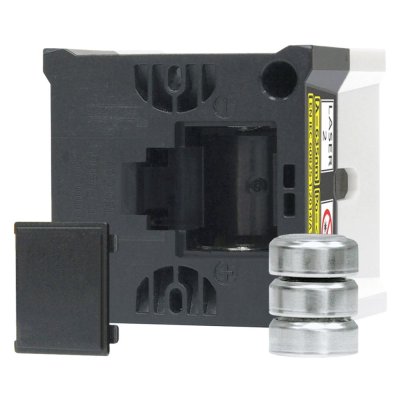

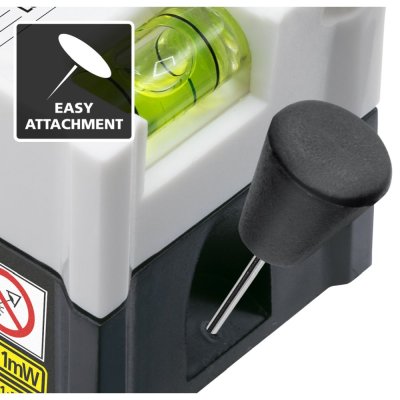

Safe attachment with special pins without damaging surfaces such as finishing coats, carpets, wood, veneered surfaces etc.

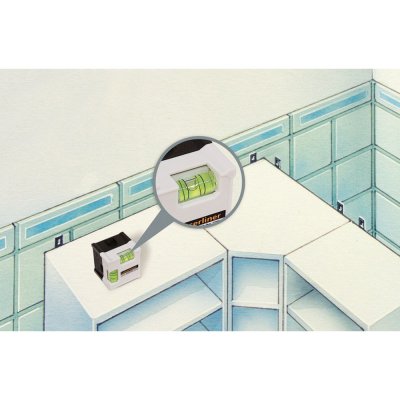

Bubble levels for adjustment
Extremely easy to use due to compact design

Horizontal/vertical levelling✅
Manual slope function✅
Battery operation✅

Vial Accuracy
±1 mm/m
Accuracy
±1 mm/m
Levelling
manual
Visibility (Typical)*
5 m
Laser Wavelength
635 nm
Laser Class
2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Power Supply
3 x 1.5V LR44 (AG13)
Operating Time
approx. 4 hours
Operating Conditions
0°C … 40°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
38 mm x 38 mm x 38 mm x #
Weight
36 g (inkl. Batterien)

Scope of delivery: LaserCube
batteries
pins
