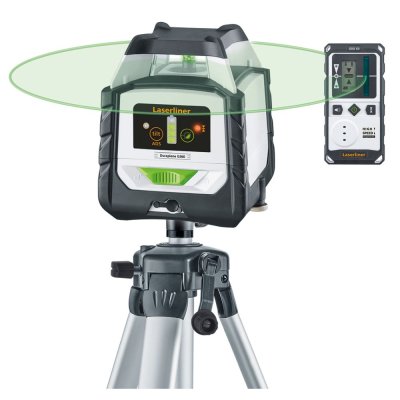

Duraplane G360 Set 175cm

Ideal for quick and precise alignment of horizontals and inclinations indoors and outdoors. The device offers a very well visible laser line and a high measurement reliability. The application is comfortable due to the various mounting options and the practical battery status display. The set includes a levelling staff and a tripod.

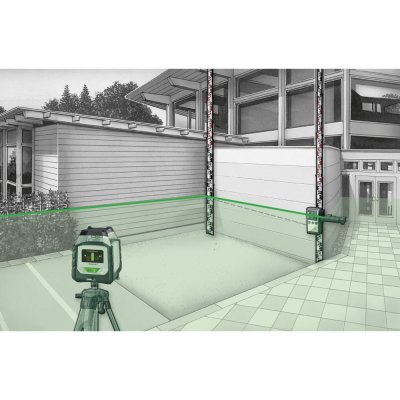

Time-saving drawing of horizontal lines in the whole room
Exact work through fine and extremely bright laser line
Reliable measurement through warning of unwanted position changes
Easy alignment of slopes
Laser booster doubles the visibility of the laser

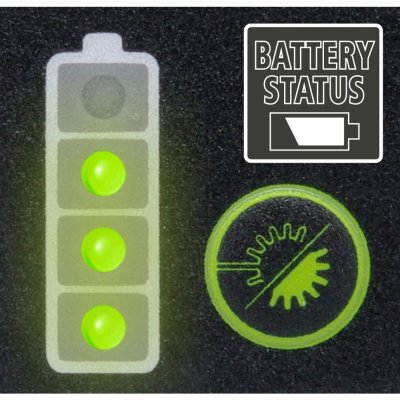

Battery status indicator
Robust, dustproof and waterproof
Integrated hand-held receiver mode for outdoor applications
Fast detection of laser lines by handheld receiver

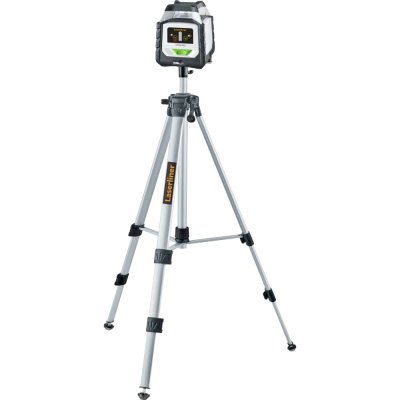

Crank tripod of aluminium
Easy-to-read, highly stable levelling staffs for use even under extreme conditions
Second lithium battery and charger included in the set

Hand receiver mode
✅
Manual slope function
✅
Automatic horizontal levelling
✅
Battery and mains operation
✅
Replaceable battery system
✅
Tilt warning function
✅
Self-Levelling Range
± 3.5° (horizontal)
Accuracy
±0.2 mm/m
Levelling
horizontal automatic
Laser Wavelength
515 nm
Laser Class
2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Laser Modes
Hand receiver mode
Protection Class
IP 54
Power Supply
Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
Power adapter 12V / DC / 2A
Operating Time
approx. 10 hours
Battery Recharging Time
approx. 4 hours
Operating Conditions
0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
125 mm x 145 mm x 120 mm
Weight
812 g (inkl. Akkupack / ohne Zubehör)

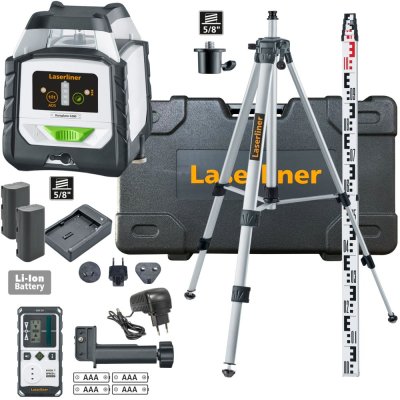

Scope of delivery: Duraplane G360
RangeXtender G 60

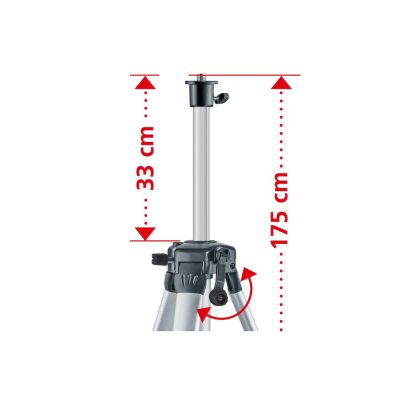

compact tripod 175 cm
3 m telescopic levelling staff
5/8" thread adapter
2 x Li-ion battery packs with external charger
network/charging device incl. international adapter
carrying case
