BeamControl-Master 120 Set

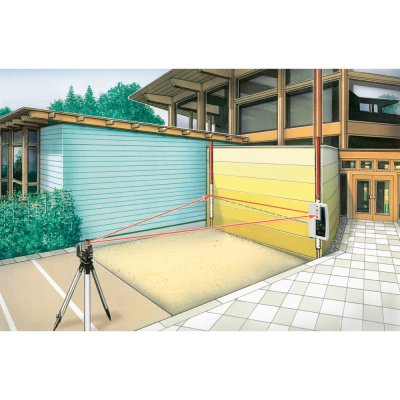

This manual rotary laser with receiver, stand and levelling staff allows precise horizontal alignment and plumbing. The device can be set to spot, scan, rotary and hand receiver mode. In spot mode, the position can easily be determined remotely. Optimum visibility can be set using the adjustable rotation speed. A light-intensive line in a range of widths and positions can be set using the scan mode. When used in handheld receiver mode, the consistently high speed ensures perfect reception quality. The combination of a Flexi levelling staff and the attachable hand receiver is perfect for ground level measurements and determining height differences without having to complete a calculation. The light and robust stand ensures the laser is securely located.

Exact horizontal alignment
Additional vertical levelling
Easy alignment of slopes

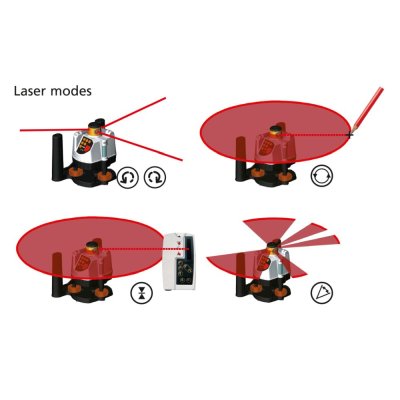

Laser modes: spot, scan, rotary and hand receiver mode
Spot mode: Practical remote determination of position
Adjustable rotation speed for optimum visibility
Hand receiver mode: Perfect reception quality due to constant high speed

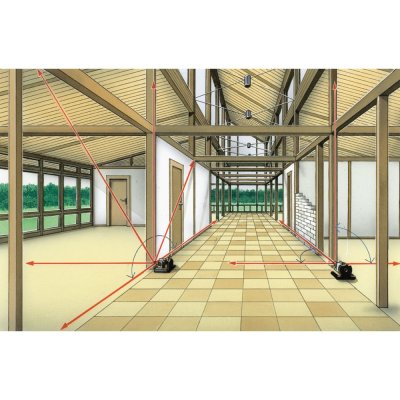

Plumb function for synchronous working on floor and ceiling

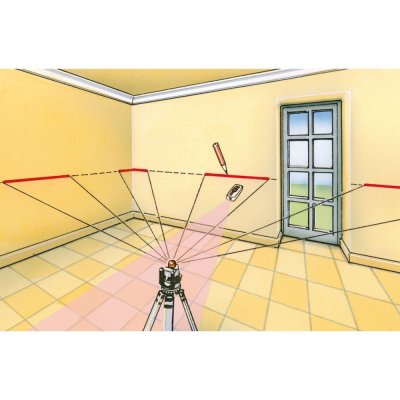

Scan mode: Adjustable light-intensive line with a range of widths and positions
Special die-cast zinc platform guarantees long-term stability
SpotLite marking: Effective prevention of parallax errors and easy marking of reference heights

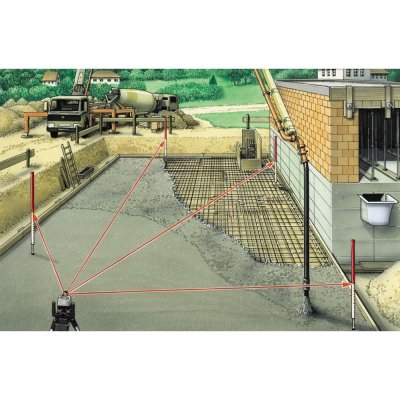

Handheld receiver suitable for outdoor applications and for fixing to levelling staffs
Light and robust stand for a secure footing

Horizontal/vertical levelling
✅

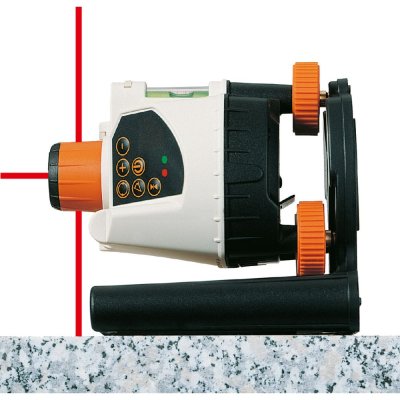

Plumb laser up (90° reference beam)
✅
Spot mode
✅
Scan mode
✅
Hand receiver mode
✅
Accuracy
±0.2 mm/m
Levelling
manual
Laser Wavelength
635 nm
Laser Class
2 / < 1 mW (EN 60825-1:2014/AC:2017)
Protection Class
IP 4X
Power Supply
4 x 1.5V LR6 (AA)
Operating Time
approx. 40 hours
Operating Conditions
0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
175 mm x 150 mm x 135 mm
Weight
678 g (inkl. Batterien)

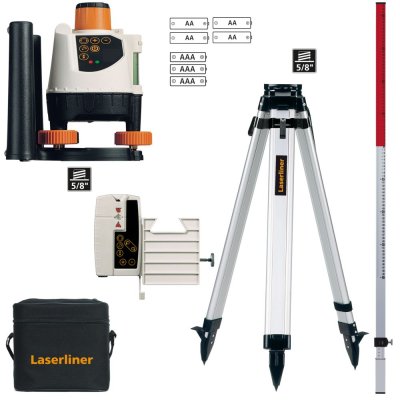

Scope of delivery: BeamControl-Master
SensoCommander 120
universal mount

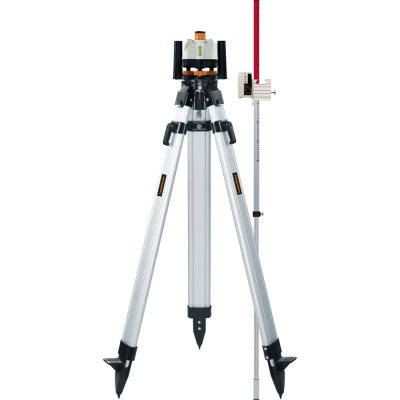

Light-weight tripod 165 cm
Flexi levelling staff
softbag
batteries
