Duraplane 360 Set 175 cm

Ideal for the fast, accurate alignment of horizontals and slopes. The device offers an easily visible laser line and high measuring reliability. The application is easy to use thanks to the wide range of mounting options and the easy-to-read levelling staff. The integrated handheld receiver mode allows use at long distances.

Exact horizontal alignment in the whole room
Reliable measurement through automatic power off with ADS tilt
Battery status indicator

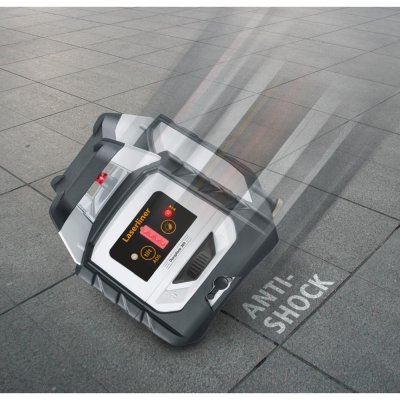

Robust, dustproof and waterproof

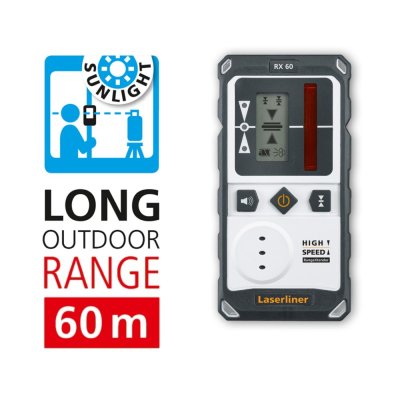

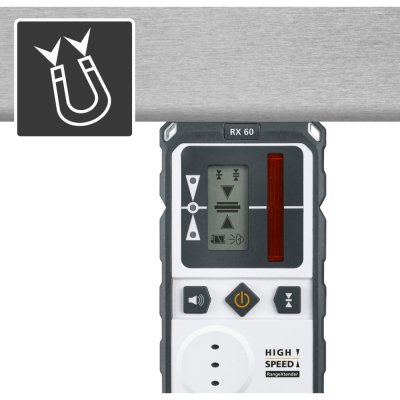

Handheld receiver suitable for outdoor applications and for fixing to levelling staffs
Fast detection of laser lines by handheld receiver

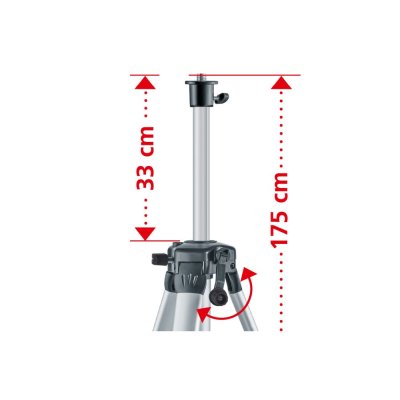

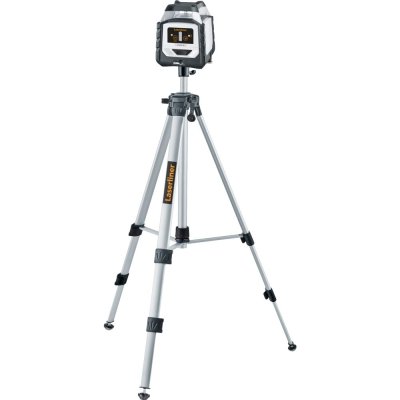

Crank tripod of aluminium

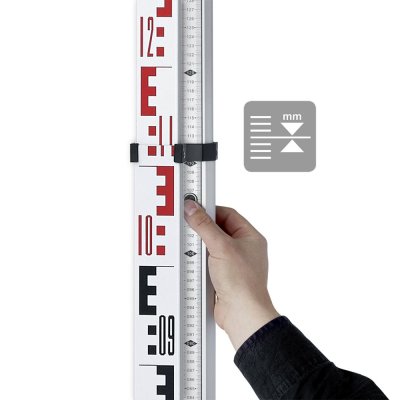

Easy-to-read, highly stable levelling staffs for use even under extreme conditions
Optional receiver for detecting laser lines at a distance of up to 40 metres

Hand receiver mode
✅
Manual slope function
✅

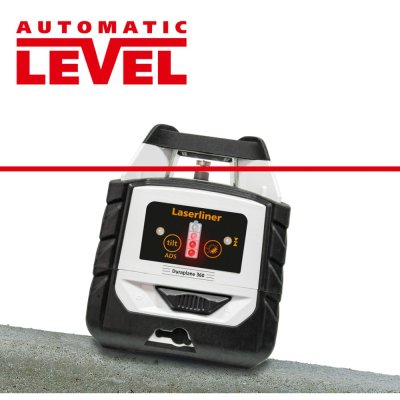

Automatic horizontal levelling
✅
Battery and mains operation
✅
Tilt warning function
✅
Replaceable battery system
✅
Self-Levelling Range
± 3.5° (horizontal)
Accuracy
±0.2 mm/m
Levelling
horizontal automatic
Laser Wavelength
635 nm
Laser Class
2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Laser Modes
Hand receiver mode
Protection Class
IP 54
Power Supply
Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
Power adapter 12V / DC / 2A
Operating Time
approx. 40 hours
Battery Recharging Time
approx. 4 hours
Operating Conditions
0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
125 mm x 145 mm x 120 mm
Weight
812 g (inkl. Akkupack / ohne Zubehör)

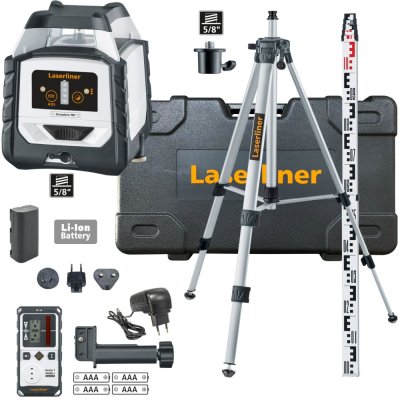

Scope of delivery: Duraplane 360
RangeXtender 60
compact tripod 175 cm
3 m telescopic levelling staff
5/8" thread adapter
Li-ion battery pack
network/charging device incl. international adapter
carrying case
