ThermoCamera Pocket

This practical thermal image camera is ideal for precise and fast image analyses in the construction industry, mechanical and electrical engineering. Your high-resolution infrared microbolometer sensor records even tiny temperature differences with impressive attention to detail. The high thermal sensitivity also enables detection of thermal bridges and insulation errors in buildings, analysis of heating systems, location of overheated components, cables and fuses. The CustomerApp function allows the thermal imaging camera to be configured quickly via extensive parameter setups for a wide range of standard applications. The large, easy-to-read colour display ensures easy use and clear presentation of the temperature curves. A high-performance lithium ion battery ensures long operating life, whereas the USB-C interface is used for the rapid transfer of the measured data to a Windows PC.

High-resolution infrared microbolometer sensor enables highly detailed analyses, even with the smallest temperature differences
Versatile: Practical measuring device for quick infrared image analyses in the construction industry, electrical engineering and mechanical engineering
Comprehensive analysis using infrared image, digital image, and MIX image (Auto Fusion: automatic overlay of infrared and digital images)
Loadable CustomApps for rapid preconfiguration for standard applications: Identify extreme temperature points, air leaks, visualise temperatures flows, etc.

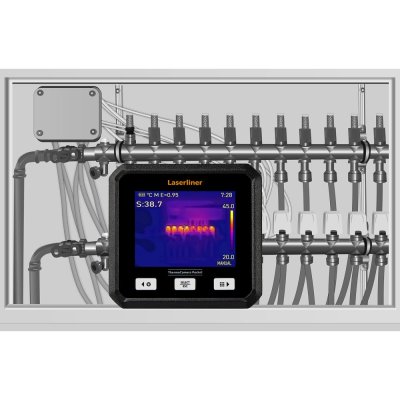

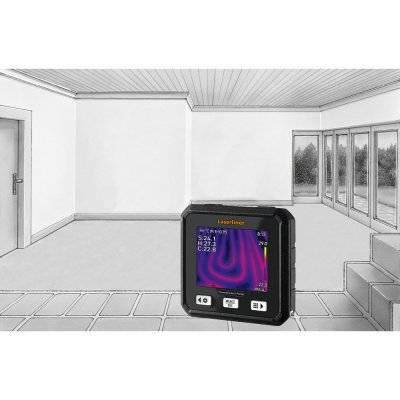

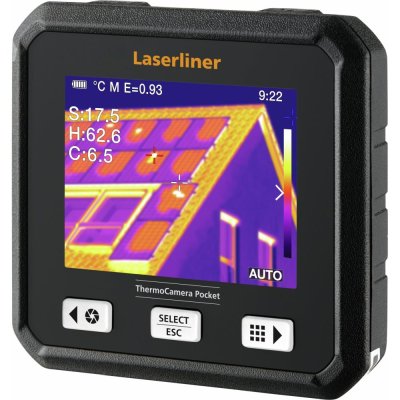

High thermal sensitivity, ideal for building thermography, for identifying thermal bridges, damp spots, failed insulation, overheating, analysis of heating pipes, identifying defective solar cells

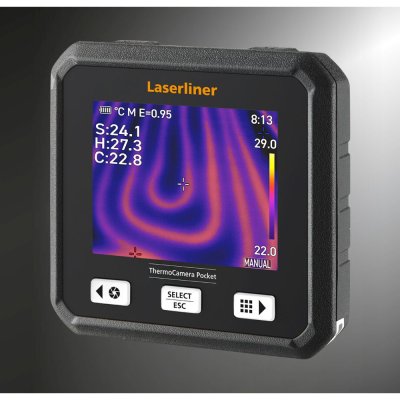

Connectible measuring functions, such as central, hot and cold point provide an immediate overview of the temperature situation at a glance
Large, easy-to-read colour display
Long battery operating time thanks to powerful lithium-ion rechargeable battery

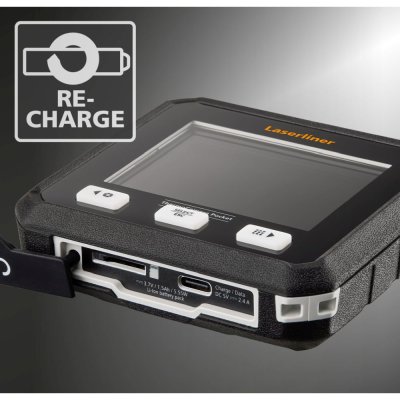

Quick transfer of measuring data to a Windows PC using a USB-C interface
High-quality radiometric Windows PC software QuickReporting-Editor Plus free to download for documentation, further editing and data evaluation

Thermal image
✅
Digital camera
✅
MIX image
✅
Min/max/centre measurement value
✅
Adjustable emissions level
✅
CustomApps
✅
Data transfer
✅
Measured Variable
Infrared temperature
Features
Point
Alarm
Image recording
Real-time video transmission
CustomApps
min./max.
Temperature range manual / automatic / Histogram
Video recording
USB mass storage
Screen Type
2,8" TFT display
Sensor Type
uncooled microbolometer
Auflösung IR-Sensor
160 x 120 pixels
Display Resolution
320 x 240 pixels
Image Frequency
9 Hz
Thermal Sensitivity (NETD)
NETD 0.05°C (50 mK) @ 30°C
Measuring Range Infrared Temperature
-20°C … 150°C, 0°C … 550°C
Accuracy Infrared Temperature
± 2°C or 2% of measured value
Infrared Temperature Resolution
0.1°C
Power Supply
Li-ion battery pack 3.7V/1.5Ah/5.55Wh

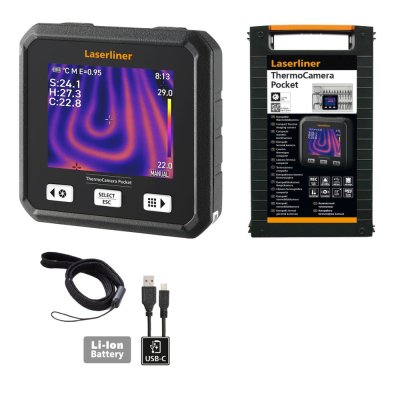

Scope of delivery: ThermoCamera Pocket
USB-A to USB-C cable
micro SD card
hand grip
carrying casev
