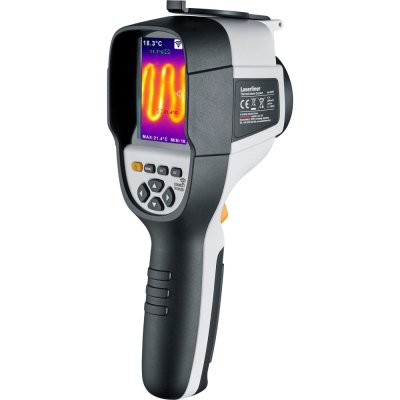

ThermoCamera Connect

The compact thermal imaging camera is suitable for applications in the electrical engineering, construction and mechanical engineering industries. An infrared sensor allows fast and easy measurements for evaluating temperature profiles. The analysis can be carried out with an infrared image, a digital image and a MIX image. The MIX image offers the user an easily comprehensible and highly comprehensive representation of the temperature profiles by combining digital and infrared images.

Infrared sensor for fast and easy measurement and evaluation of temperature profiles
Comprehensive analysis through infrared image, digital image and MIX image

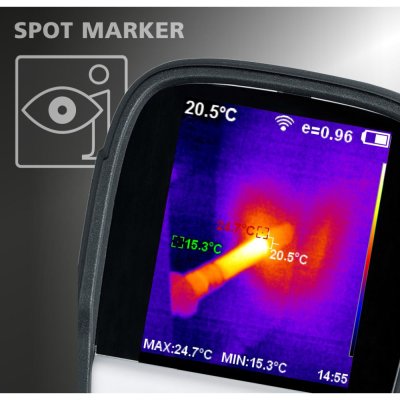

Central measuring point for temperature analysis and hot/cold spot marking
Easy-to-read high resolution display
Wide range of possible applications thanks to large measuring range

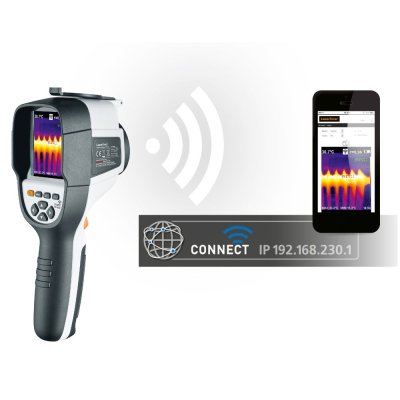

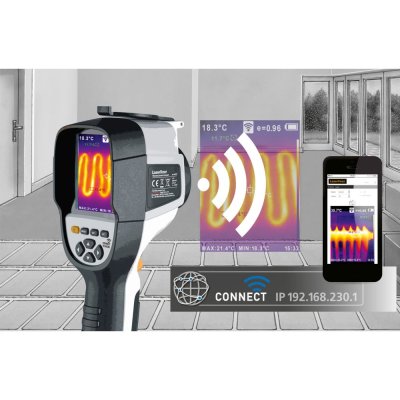

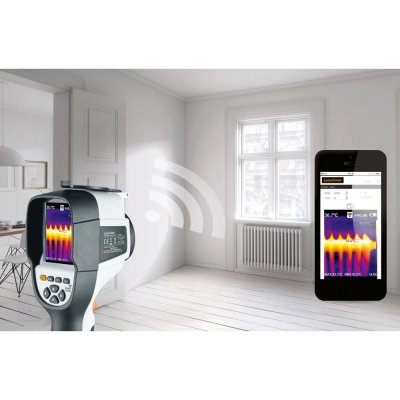

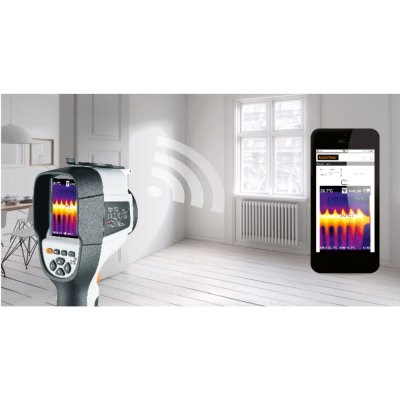

Data transfer and control via WLAN

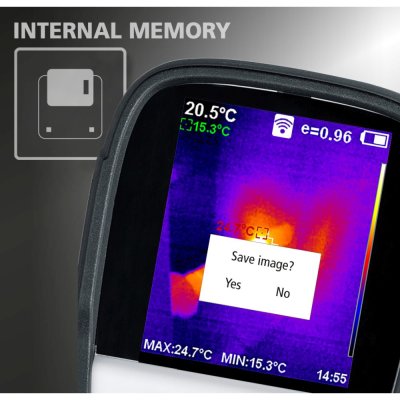

Integrated memory for data backup

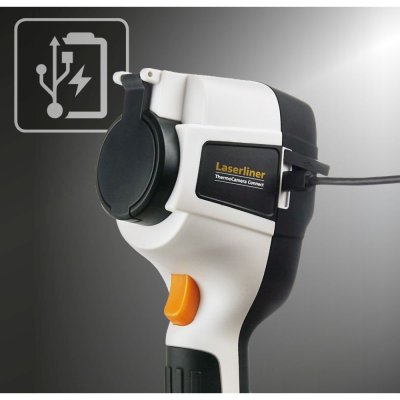

Micro USB port for charging battery

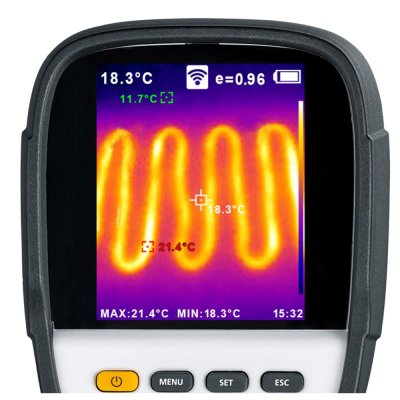

Thermal image
✅
Digital camera
✅
MIX image
✅
Min/max/centre measurement value
✅
Data transfer
✅

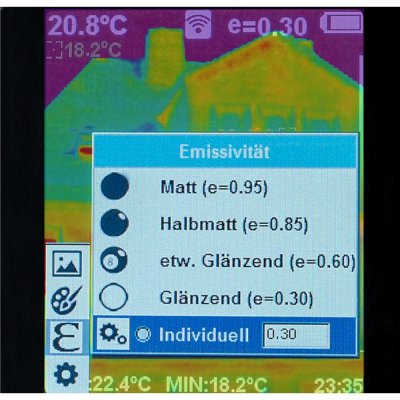

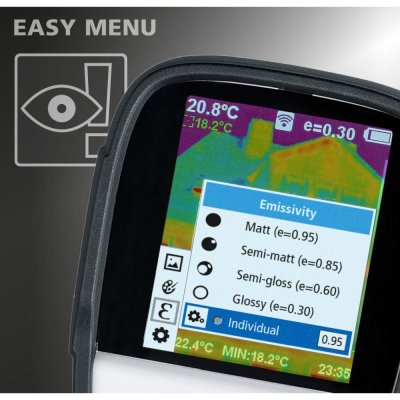

Adjustable emissions level
✅
Measured Variable
Infrared temperature
Features
Point
min./max.
Temperature range automatic
Screen Type
3,2" TFT display
Sensor Type
uncooled microbolometer
Auflösung IR-Sensor
220 x 160 pixels
Display Resolution
240 x 320 pixels
Spectral Range
8-14 µm
Image Frequency
9 Hz
Thermal Sensitivity (NETD)
70 mK @30°C
Measuring Range Infrared Temperature
-20°C … 350°C
Accuracy Infrared Temperature
± 2°C or 2% of measured value
Infrared Temperature Resolution
0.1°C
Power Supply
Li-ion battery pack 3.7V / 2.0Ah / 7.4Wh
Micro USB 5V / 2A
Operating Time
approx. 3 hours
Battery Recharging Time
approx. 4 hours
Operating Conditions
0°C … 45°C, Luftfeuchtigkeit max. 85% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull)
Storage Conditions
-20°C … 60°C, Luftfeuchtigkeit max. 85% rH
Dimensions (W x H x D)
105 mm x 223 mm x 90 mm
Weight
389 g (inkl. Batterien)

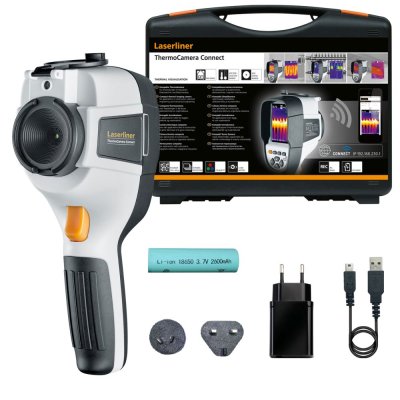

Scope of delivery: ThermoCamera Connect
Li-Ion battery pack with power supply / battery charger and international adapter
USB charging cable
carrying case
