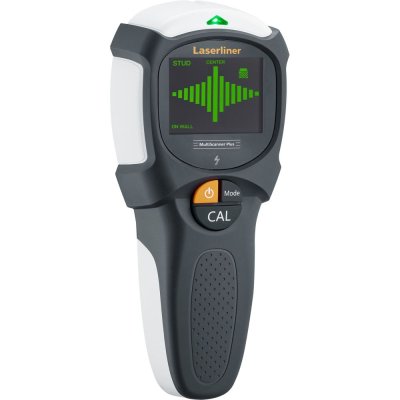

MultiScanner Plus เครื่องสแกนผนัง

This electronic locating device provides targeted location of metal, location of live and non-live wiring, and identification of wall beams and joists. The device is suitable for use on all non-metallic drywall structures It identifies hidden, non-magnetic metals under stone, concrete, screed, wood, ceramic and mineral building materials to a depth of up to 10 centimetres and magnetic metals to a depth of up to 12 centimetres. The device displays the depth in metal mode and indicates whether the metal is magnetic or non-magnetic.

Targeted location of hidden, magnetic or non-magnetic metals under stone, concrete, screed, wood, ceramic and mineral building materials
Device provides information on whether magnetic or non-magnetic metal has been detected
Precise depth display in metal mode to check drilling depths
Precise location of live and non-live wiring, such as under plaster or wooden panelling
Precise location of wall beams and joists in drywall structures, including centre/edge display

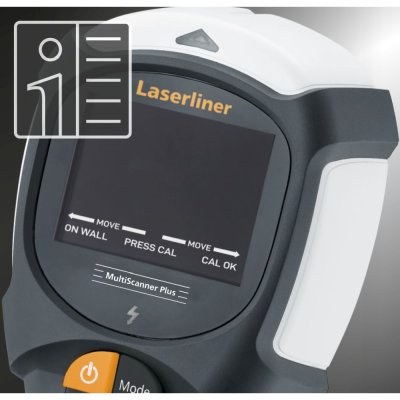

Automatic and manual calibration functions for optimum adjustment to the surface and isolation of measured objects
Suitable for all non-metallic structures
Simple and reliable application thanks to user guide on LC display
Sturdy, ergonomically designed housing
High level of safety through permanent voltage warning
Energy-saving Auto Off function when not in use

Operating instructions✅
Autocalibration✅
Metal detection✅
Specific metal detection (iron/copper)✅
Identify supporting structures (metal/wood)✅
Depth display in metal mode✅

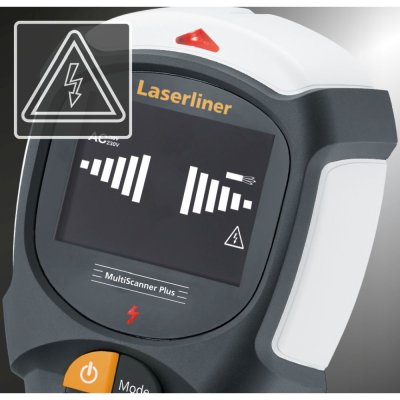

Locate live wires✅
Warning for 230 V wires✅

Measuring Depth
Targeted metal location: Ferro-Scan / Non-Ferro-Scan (METAL-SCAN): up to 12 cm / up to 10 cm depth
Targeted location of live supply lines (AC-SCAN): up to 4 cm depth
Location of dead supply lines: up to 4 cm depth
Wood / metal beam location (STUD-SCAN): up to 2 cm depth
Detection Range AC
110 … 230V, 50 … 60 Hz
Power Supply
Li-ion battery pack 3.7V / 0.3Ah / 1.11Wh
Operating Time
approx. 3 hours
Operating Conditions
-10°C … 50°C, Luftfeuchtigkeit max. 75% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull)
Storage Conditions
-20°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
87 mm x 205 mm x 38 mm
Weight
178 g (inkl. Akkupack)

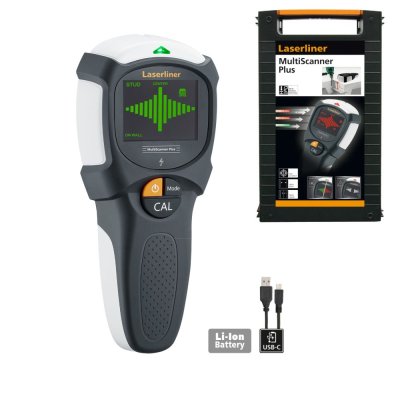

Scope of delivery: MultiScanner Plus
Li-ion battery pack

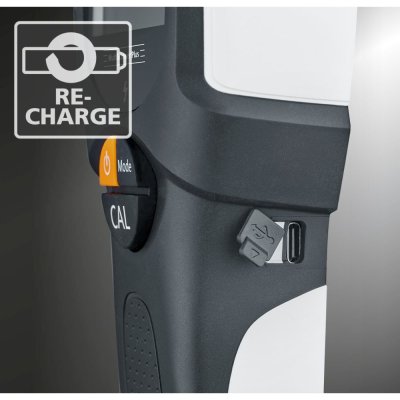

USB-C-cable
carrying case
