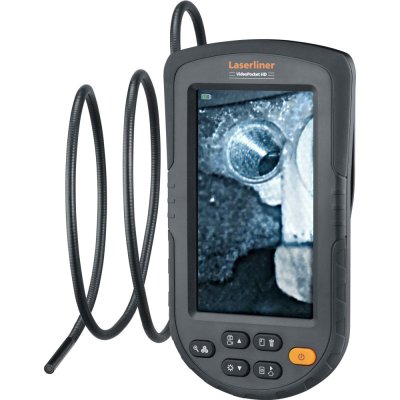

High-resolution compact video inspection system with large display, compare image function, waterproof camera unit and practical mirror, magnet and hook attachments

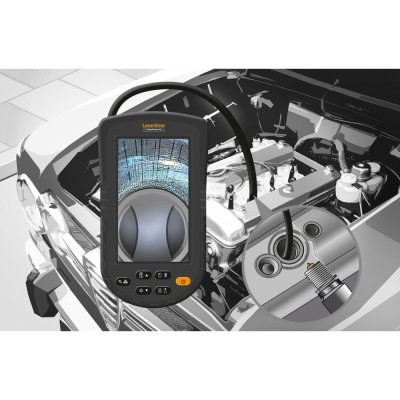

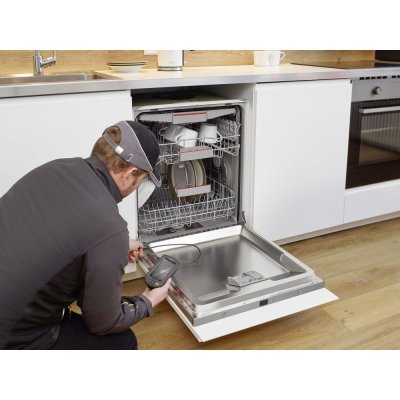

This high-resolution and compact video inspection system allows detailed visual inspection of hard-to-reach locations such as pipework, suspended ceilings and vehicles. Six powerful LEDs on the waterproof camera unit, adjustable in ten settings, ensure effective illumination during use. Details can be clearly captured using the zoom function. Inspection results are clearly identifiable thanks to the large colour display and image alignment. The compare image function allows the user to see the differences between the live image and a saved reference image.

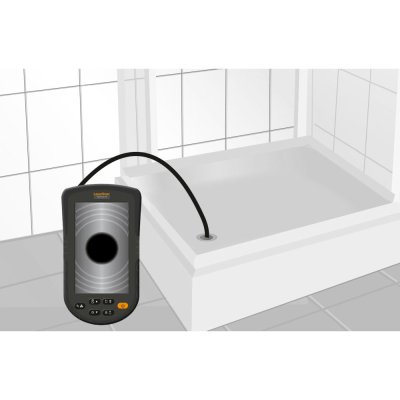

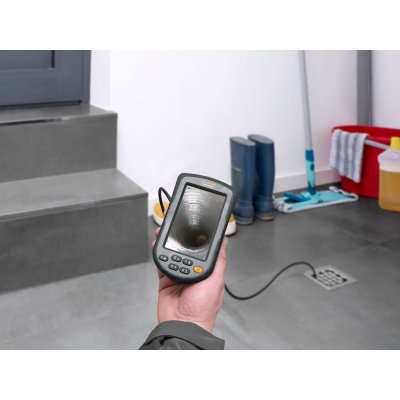

Effective problem localisation behind or in objects, walls, pipes, cavities
High-resolution camera for detailed image and video capture
Identify specific differences with the compare image function
Small camera unit ideal for hard-to-reach places

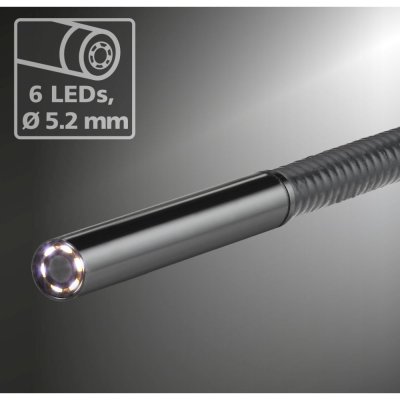

Powerful object lighting thanks to six high-performance LEDs
Large, exceptionally easy-to-read display

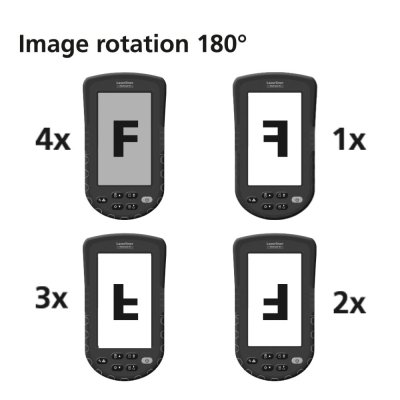

Suitable image available on the monitor through rotation and mirroring
Waterproof and dustproof camera unit
Magnet, mirror and hook mount for fixing on the camera head
Pull/lift difficult to reach objects
Mirror allows objects to be viewed at 90° angle
Evaluation and documentation using internal photo memory and micro SD card
Compact design
Live display
✅
Image/video recording
✅
Image/video playback
✅
Internal image memory
✅
Image comparison
✅
Object illumination
✅
Image alignment
✅
Digital zoom
✅
Data transfer
✅
Diameter Camera Head
5.2 mm
Camera Resolution
1280 x 720 pixels
Field of View (FOV)
65°
Depth of Focus (DOF)
3 … 8 cm
Screen Type
4,3" TFT display
Display Resolution
480 x 272 pixels
Image Format
JPEG
Length of Probe
1 m
Illumination
10 brightness levels
Digital Zoom
2x digital zoom in 25% increments
Memory
Micro-SD memory card up to 32 GB
Port
Mini USB
Ports

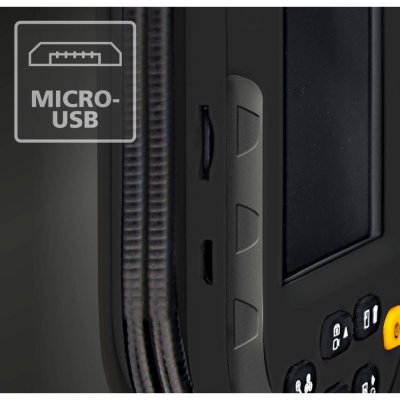

Micro USB
Power Supply
4 x 1.5V LR6 (AA)
Dimensions (W x H x D)
85 mm x 155 mm x 32 mm
Weight
370 g (inkl. Batterien)

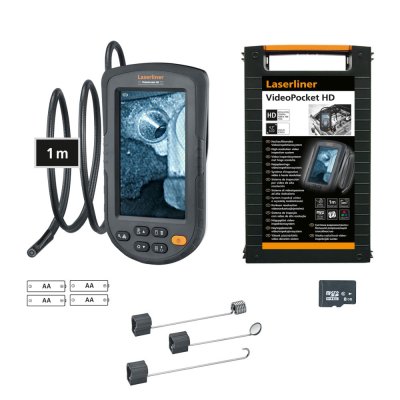

Scope of delivery: VideoPocket HD
TopClips
micro SD card
batteries
carrying case
