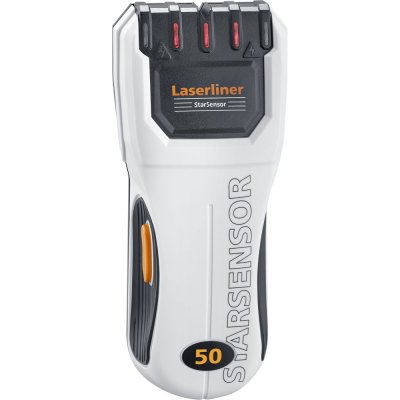

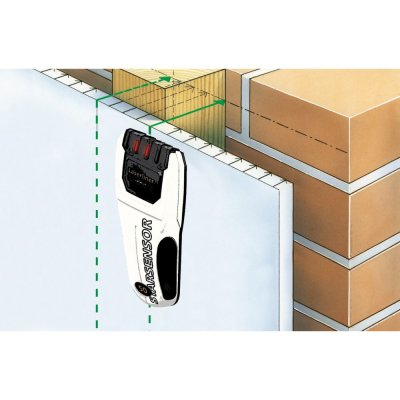

StarSensor 50

This electronic locating device finds wall beams and joists as well as live wires in drywall structures. High accuracy is achieved by checking the surface at five different points simultaneously. Both the centre and edges of hidden objects are therefore detected. An clearly visible LED indicator signals the object has been located. Easy, operation with one hand and an ergonomic housing make the device easy to use. The permanent voltage warning ensures high levels of safety. The device does not need to be calibrated.

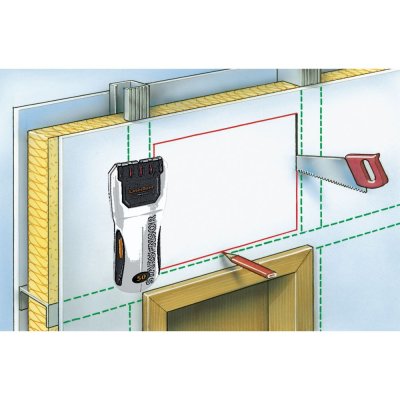

Effective beam and metal detection in drywall structures
High accuracy due to five sensors
Simultaneous detection of the centre and edges of the object

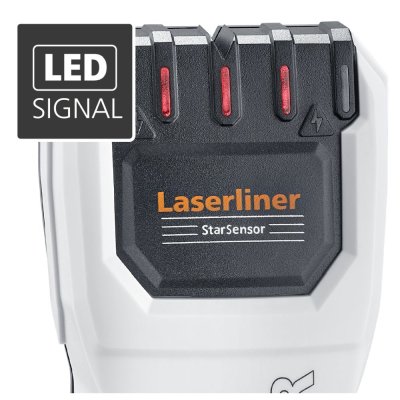

A clearly visible LED signal indicates the object has been located
Deep scan permanently switched on
No calibration required

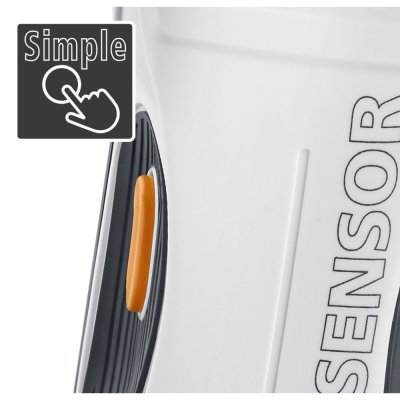

Easy operation with one hand
Sturdy, ergonomically designed housing

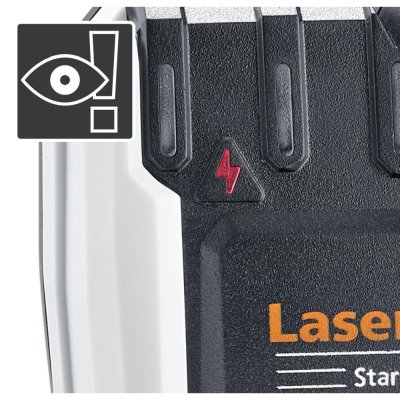

High level of safety through permanent voltage warning

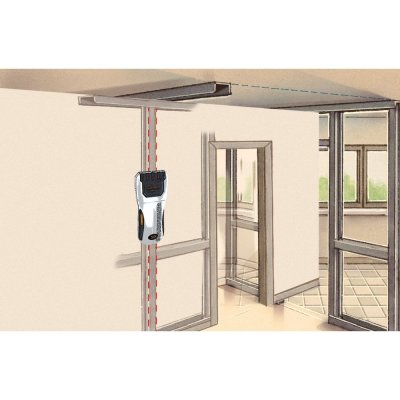

Identify supporting structures (metal/wood)
✅
Locate live wires
✅
Warning for 230 V wires
✅
LED Display
yes
Measuring Depth
Wood / metal beam location (STUD-SCAN): up to 4 cm depth
Targeted location of live supply lines (AC-SCAN): up to 2 cm depth
Accuracy
typically 3% of measured depth
Power Supply
2 x 1.5V LR6 (AA)
Operating Conditions
0°C … 40°C, Luftfeuchtigkeit max. 20 … 90% rH, nicht kondensierend, #
Storage Conditions
-10°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend
Dimensions (W x H x D)
73,5 mm x 186 mm x 44 mm
Weight
186 g (inkl. Batterien)

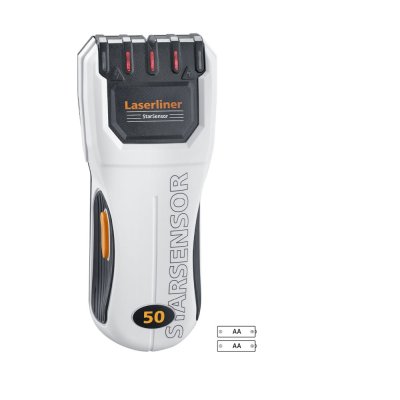

Scope of delivery: StarSensor 50
batteries
