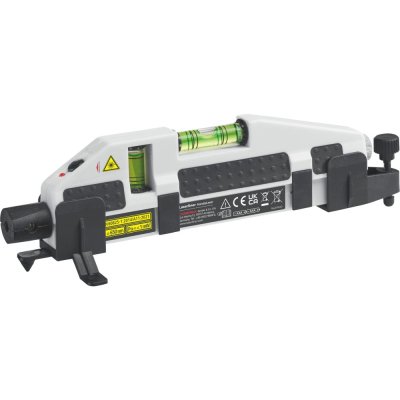

HandyLaser Plus เครื่องเลเซอร์วัดระดับ

The universal laser spirit level enables precise horizontal alignment in many applications, such as in laying tiles, joinery, drywall and window fitting. The measuring tool has a point laser for optical extension which can also be used for vertical levelling by redirecting the beam using a beam splitter. Angles can also be created easily using the manual slope function. The special spring clips mean this laser spirit level is particularly useful when laying tiles. The magnetic bracket offers the benefit of hands-free working on metal constructions. The impact-proof, plastic housing is made from a large proportion of recycled material and makes a valuable contribution to sustainability.

Sustainable design: large proportion of the housing is made from recycled plastic
Exact horizontal alignment
Integrated dot laser for optical extension

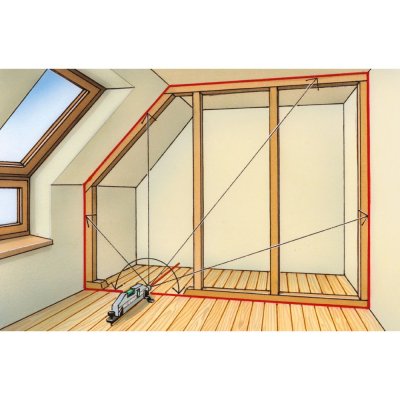

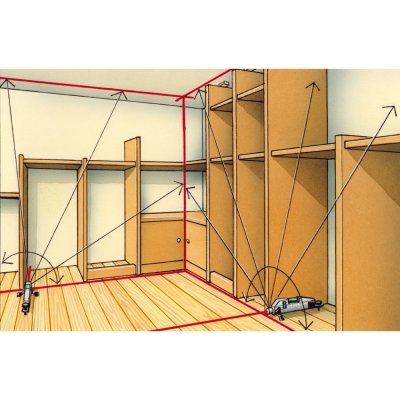

Vertical levelling by deflecting the laser line through 90° with a beam splitter
Manual alignment of slopes

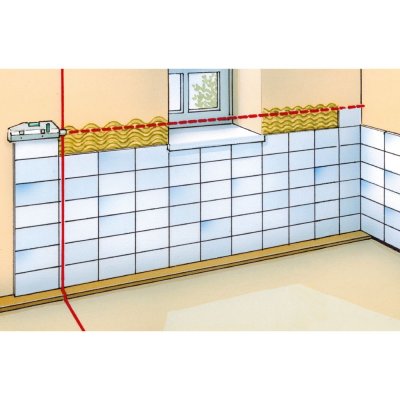

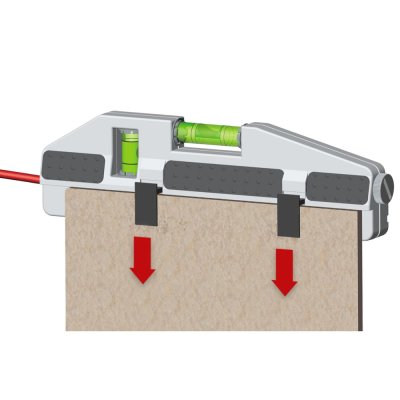

Special spring clips, ideal for tiling
Free hands when working on metal constructions thanks to magnetic holder
ON/OFF switch with highly visible LED laser indicator
Impact-proof, plastic casing with rubberised grips

Horizontal levelling✅
Manual slope function✅
Battery operation✅

Vial Accuracy
±0.5 mm/m
Levelling
manual

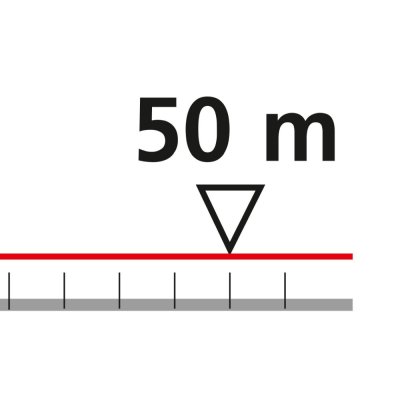

Visibility (Typical)*
50 m
Laser Wavelength
650 nm
Laser Class
2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Power Supply
2 x 1.5V LR03 (AAA)
Operating Time
approx. 65 hours
Operating Conditions
0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
210 mm x 59 mm x 62 mm
Weight
130 g (inkl. Batterien)

Scope of delivery: HandyLaser Compact

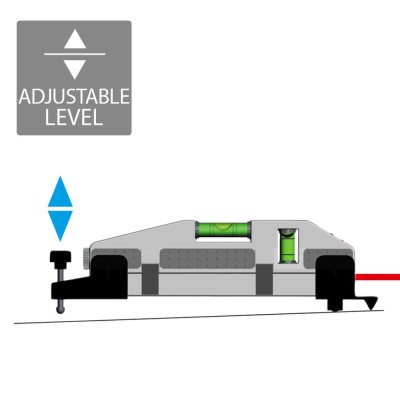

adjustable feet
90° beam splitter
batteries
