SuperSquare-Laser 4

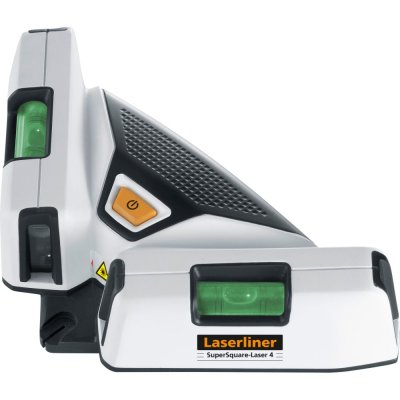

Description: This 90° line laser projects four highly visible lines and is ideal for laying wall and floor tiles. The attached lay edges and contact surface make it easy to position floor tiles. The special pins allow the device to be securely positioned without damaging surfaces such as finishing coats, carpets, wood and veneers. Integral vials allow the device to be adjusted – these can also be used a spirit level. The housing of the laser is made from a large proportion of recycled plastic and makes a valuable contribution to sustainability.

Sustainable design: large proportion of the housing is made from recycled plastic

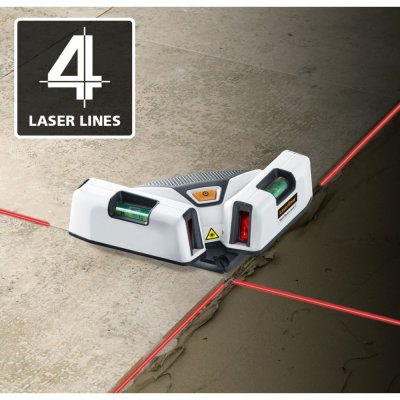

The 4 clearly visible laser lines are ideally suited for aligning tiles
Suitable for use on floors and walls
The applied lay edges and contact surface make it easy to position floor tiles
Safe attachment with special pins without damaging surfaces such as finishing coats, carpets, wood, veneered surfaces etc.
Bubble levels for adjustment
Can be used as a laser spirit level

Horizontal/vertical levelling
✅
Manual slope function
✅
Battery operation
✅
Vial Accuracy
±0.5 mm/m
Levelling
manual
Visibility (Typical)*
15 m
Laser Wavelength
635 nm
Laser Class
2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Power Supply
2 x 1.5V LR6 (AA)
Operating Time
approx. 15 hours
Operating Conditions
0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
200 mm x 48 mm x 100 mm
Weight
260 g (inkl. Batterien)

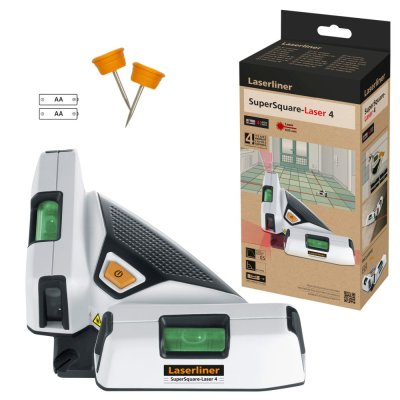

Scope of delivery: SuperSquare-Laser 4
pins
batteries
