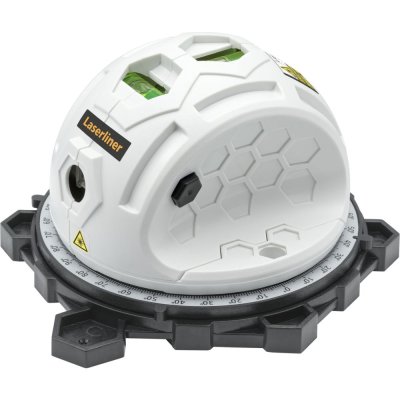

SuperLine 2D

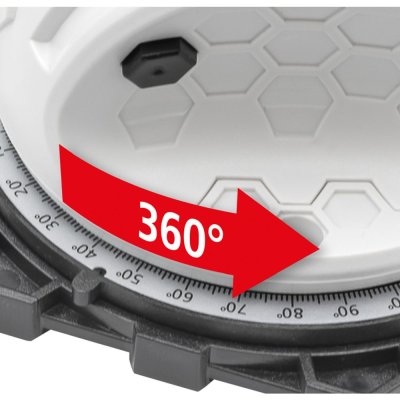

Description: The 2-axis line laser enables precise horizontal and vertical alignment on floors and walls. The 360° rotating angle scale allows the device and the scale ring to be adjusted independently to any angle. With special pins and adhesive magnets, secure mounting can be achieved on surfaces such as plaster, wallpaper, wood, veneered surfaces, and metal. The laser’s housing is largely made of recycled plastic, contributing significantly to sustainability.

Sustainable design: large proportion of the housing is made from recycled plastic

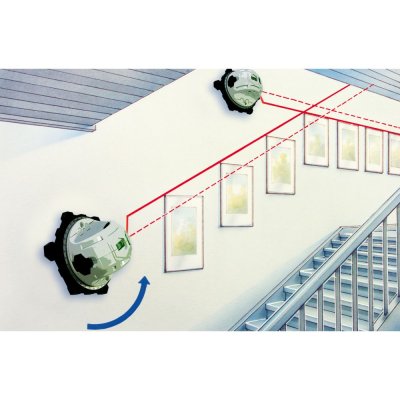

Accurate horizontal and vertical alignment of objects
Special pins allow the device to be positioned on surfaces such as finishing coats, carpets, wood, veneered surfaces etc.

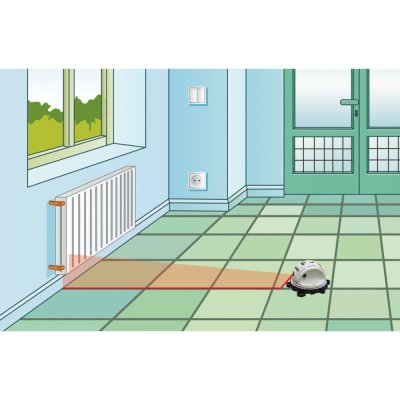

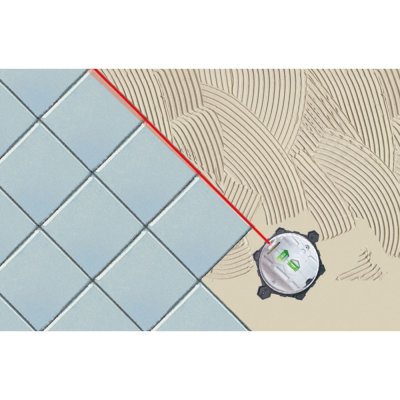

Suitable for use on floors and walls

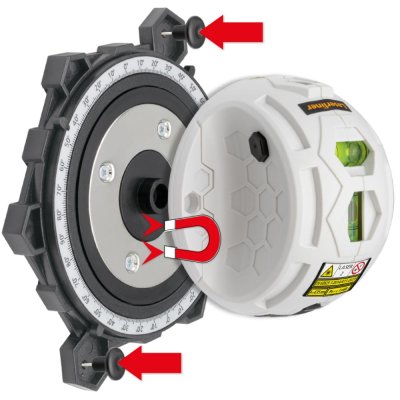

Strong magnetic clamps for attaching to metal surfaces
Easy-to-read, illuminated spirit-level

Horizontal/vertical levelling
✅
Manual slope function
✅
Battery operation
✅
Vial Accuracy
±1 mm/m
Accuracy
±1 mm/m
Levelling
manual
Laser Wavelength
635 nm
Laser Class
2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Power Supply
2 x 1.5V LR03 (AAA)
Operating Time
approx. 15 hours
Operating Conditions
0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-20°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
126 mm x 65 mm x 98 mm
Weight
188 g (inkl. Batterien)

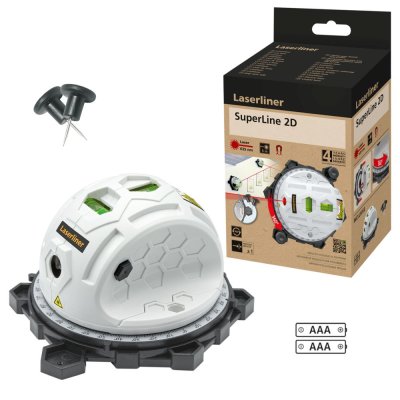

Scope of delivery: SuperLine 2D
pins
batteries
