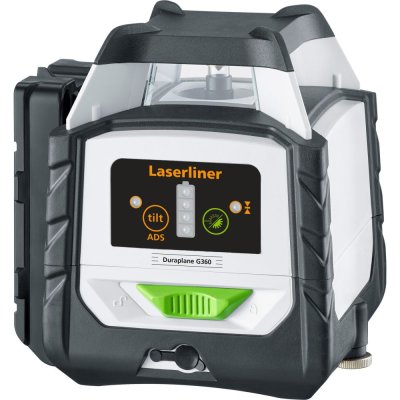

Duraplane G360 RX

The Duraplane G360 RX is ideal for the quick and accurate alignment of horizontals and slopes. Green laser technology provides high visibility, which can even be doubled with the laser booster. It is comfortable to use thanks to the many mounting options of the CrossGrip mounting bracket and the battery status display. With the handheld receiver, the device can also be used outdoors. The Duraplane with the anti-drift system switches off automatically in the event of external influences. The handheld receiver can be easily mounted on levelling staffs.

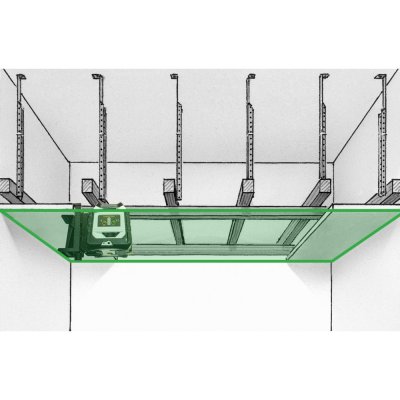

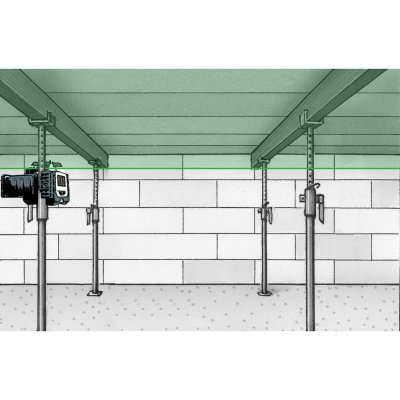

Time-saving drawing of horizontal lines in the whole room
Exact work through fine and extremely bright laser line
Reliable measurement through warning of unwanted position changes
Many mounting options thanks to magnets and clamping bracket
Laser booster doubles the visibility of the laser

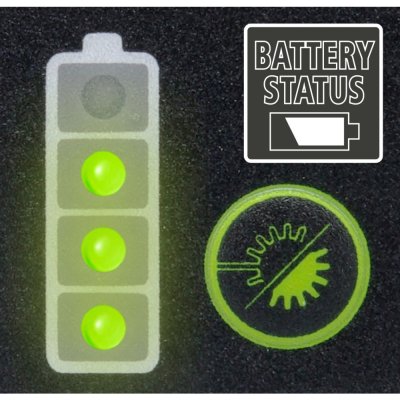

Battery status indicator

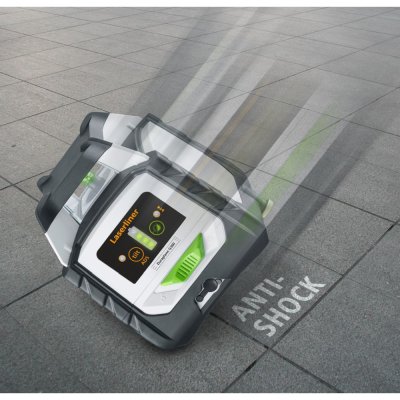

Robust, dustproof and waterproof
CrossGrip clamp and wall bracket
Second battery for long operating time
Handheld receiver suitable for outdoor applications and for fixing to levelling staffs
Fast detection of laser lines by handheld receiver

Hand receiver mode
✅
Manual slope function
✅

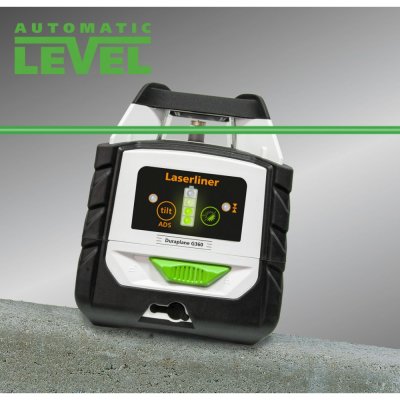

Automatic horizontal levelling
✅
Battery and mains operation
✅
Replaceable battery system
✅
Tilt warning function
✅
Self-Levelling Range
± 3.5° (horizontal)
Accuracy
±0.2 mm/m
Levelling
horizontal automatic
Laser Wavelength
515 nm
Laser Class
2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Laser Modes
Hand receiver mode
Protection Class
IP 54
Power Supply
Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
Power adapter 12V / DC / 2A
Operating Time
approx. 10 hours
Battery Recharging Time
approx. 4 hours
Operating Conditions
0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
125 mm x 145 mm x 120 mm
Weight
812 g (inkl. Akkupack / ohne Zubehör)

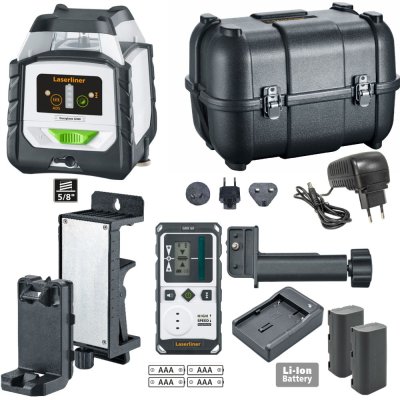

Scope of delivery: Duraplane G360
RangeXtender G 60
CrossGrip Snap
2 x Li-ion battery packs with external charger
network/charging device incl. international adapter
carrying case
