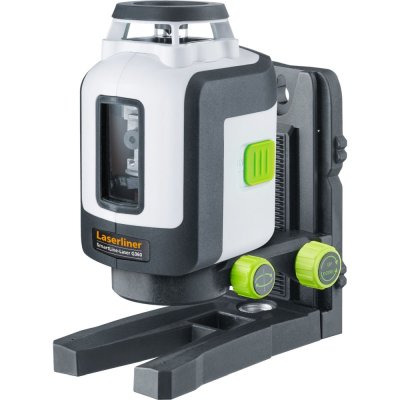

SmartLine-Laser G360

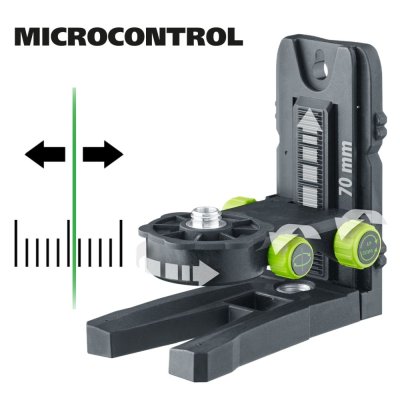

This 360° line laser generates a horizontal laser circle and a vertical laser line at a right angle, for the precise alignment of objects throughout the room. The device is suitable for use outdoors and over long ranges thanks to the optimum visibility of the green laser lines and the integrated hand-held receiver. The WallHolder Plus, a height-adjustable magnetic bracket, is ideal for easily attaching to walls and metal items.

Sustainable design: large proportion of the housing is made from recycled plastic
Exact alignment through horizontal laser circle and vertical laser line
Good visibility through green laser technology
Ideal for work close to the ceiling
Easy alignment of slopes

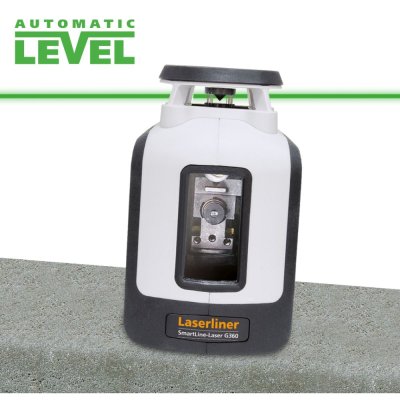

Time-saving automatic alignment
Individually switchable laser lines

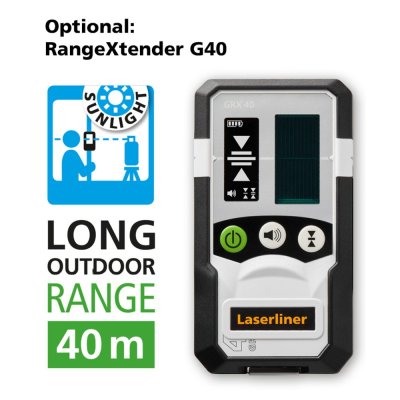

Integrated handheld receiver mode for outdoor applications and long ranges

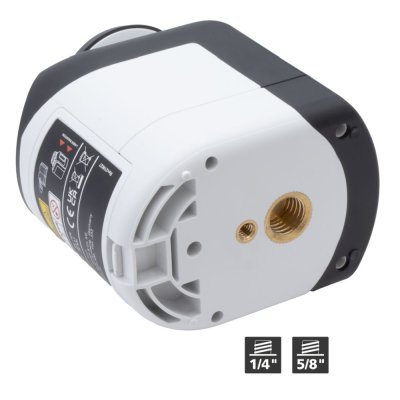

Diverse range of mounting options on tripods, walls and metal surfaces

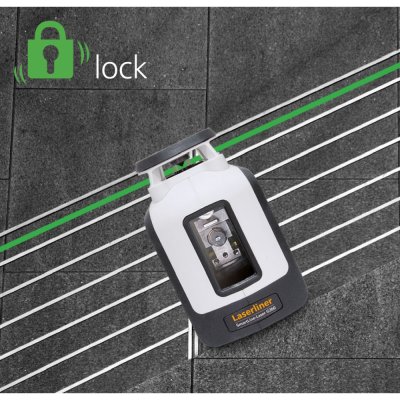

Pendulum restraint for safe transport

Horizontal/vertical levelling
✅
Manual slope function
✅
Hand receiver mode
✅
Battery operation
✅
Self-Levelling Range
± 4°
Accuracy
±0.3 mm/m
Levelling
automatic
Visibility (Typical)*
30 m
Working Range with Hand Receiver
(depends on how the technology affects the difference in brightness) 30 m
Laser Wavelength
515 nm
Laser Class
2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Power Supply
4 x 1.5V LR6 (AA)
Operating Time
approx. 9 hours
Operating Conditions
0°C … 40°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
105 mm x 126 mm x 76 mm
Weight
514 g

Scope of delivery: SmartLine-Laser G360
WallHolder Plus
batteries
