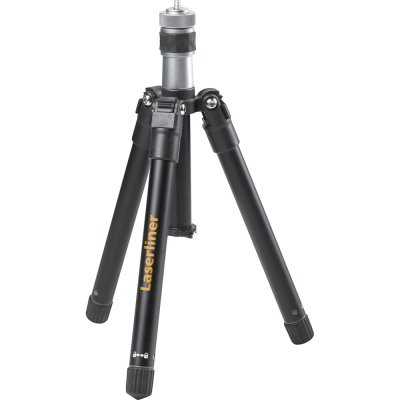

SpiderStand 150 cm

Description: Laser measuring devices with 1/4” thread can be securely installed with this universal and high-quality compact tripod. Thanks to three-fold pull-out tripod tube and four-fold pull-out legs, including secure fixing, it can be optimally adjusted to the application situation. The UpsideDown function is especially practical: In just a few seconds, the user can insert the tripod tube in the tripod base upside down, as a result of which the laser is positioned at a low height, ideal for precise applications close to the ground. Rubberised tips on the tripod legs keep slippage to a minimum on smooth surfaces and protect sensitive floors from damage.

Exact and reliable installation of laser measuring instruments
For all laser measuring devices with 1/4" thread
Three-fold pull-out tripod tube allows flexible height adjustment
Four-fold pull-out tripod legs including secure fixing allow optimum height adjustment depending on the application

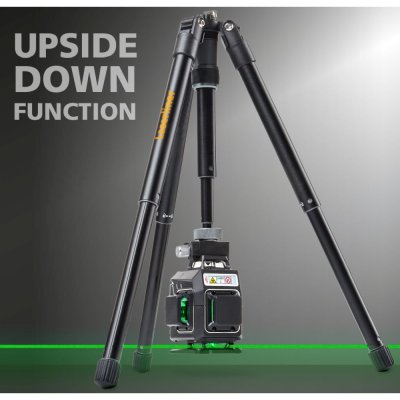

UpsideDown function: Quick turning of the tripod column to position the laser at low heights for working close to the ground
Rubberised tips keep slippage to a minimum on smooth surfaces and protect sensitive floors from damage

Material
Aluminum
Max. Height
150 cm
Min. Height
35 cm
Tripod Connection
1/4" thread
Operating Conditions
-20°C … 60°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-20°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
73 mm x 34 mm x 73 mm
Weight
610 g (ohne Zubehör)

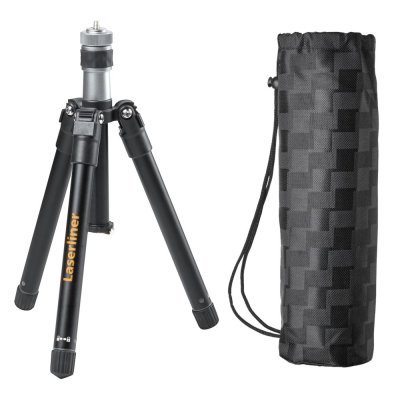

Scope of delivery: SpiderStand 150 cm
softbag
