VarioStand L 120 cm

Description: This high-quality aluminium tripod allows laser measuring instruments with a 1/4” and 5/8” thread to be set up safely and accurately, irrespective of the ground surface. The crank stroke, the combined tips (rubber/steel) and the telescopic tripod legs provide accurate adjustment.

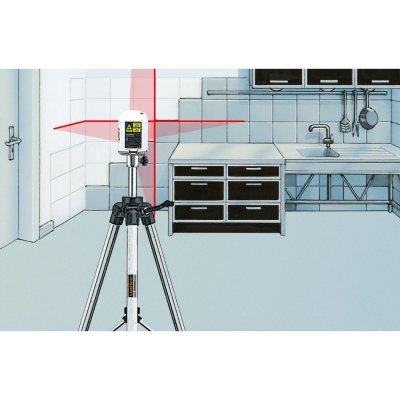

Exact and reliable installation of laser measuring instruments

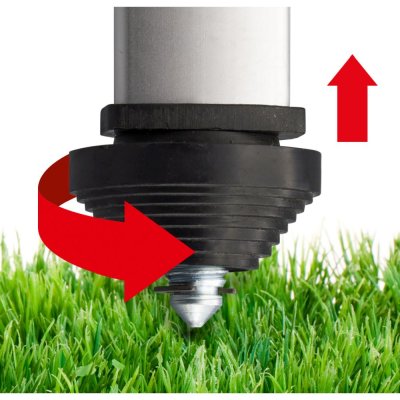

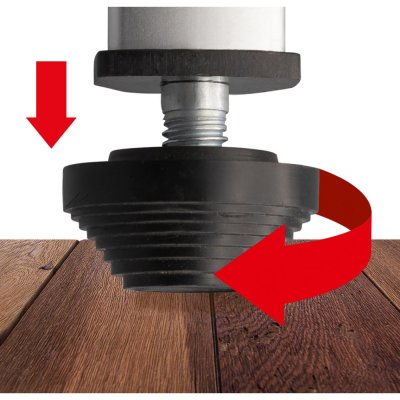

Easily adaptable to the ground surface thanks to combined rubber and steel tips

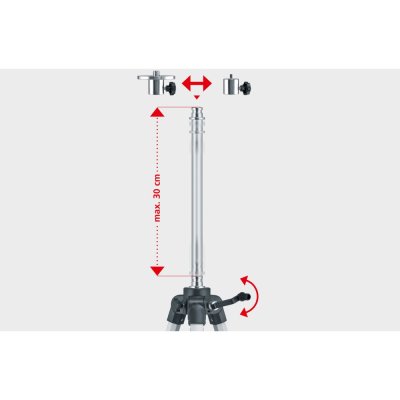

Crank height adjustment and telescopic tripod legs

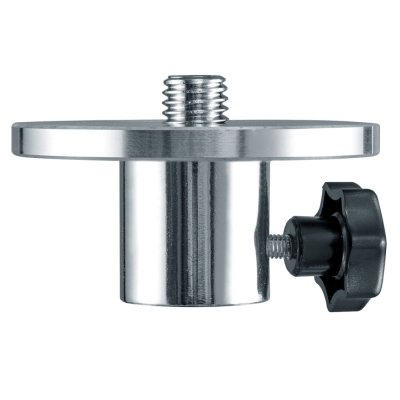

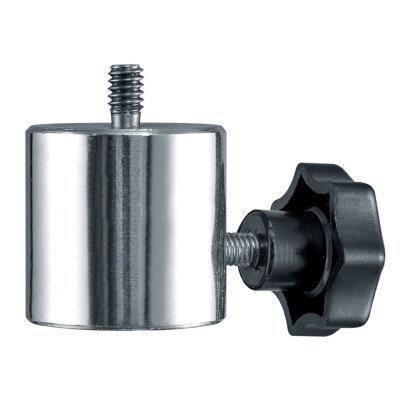

With adapter for mounting devices with 1/4" and 5/8" thread

Material
Aluminum
Max. Load Capacity
5 kg
Max. Height
1200
Min. Height
440
Tripod Connection
1/4" / 5/8" thread
Operating Conditions
-20°C … 60°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-20°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
120 mm x 625 mm x 120 mm
Weight
1600 g (ohne Zubehör)

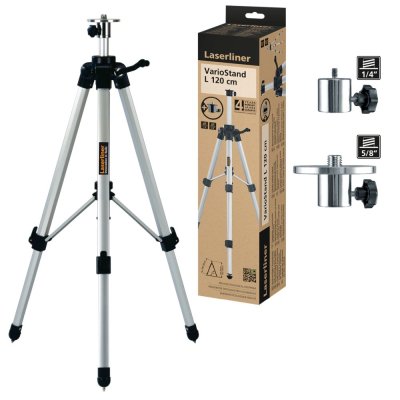

Scope of delivery: VarioStand L 120 cm
1/4” and 5/8” thread adapter
