EasyCross-Laser Green Set

The automatic cross-line laser generates a light green laser cross that is easy to see and is perfectly suited to precise horizontal and vertical alignment work. The multi-functional bracket enables the optimum attachment of the laser to tripods with 1/4" and 5/8” threads, walls and metal constructions. Optical signals warn the user when the unit is outside its self-levelling range. The housing of the laser is made from a large proportion of recycled plastic and makes a valuable contribution to sustainability. A pendulum lock ensures safe transportation.

Sustainable design: large proportion of the housing is made from recycled plastic

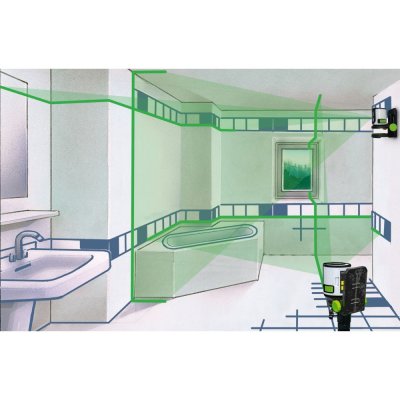

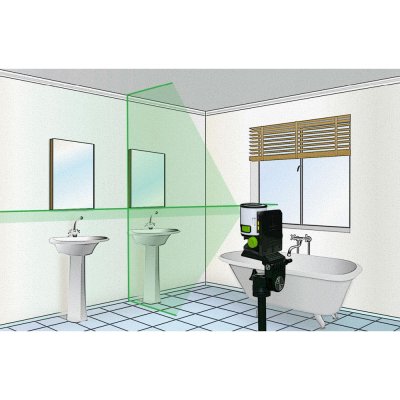

Accurate horizontal and vertical alignment of objects
Good visibility through green laser technology

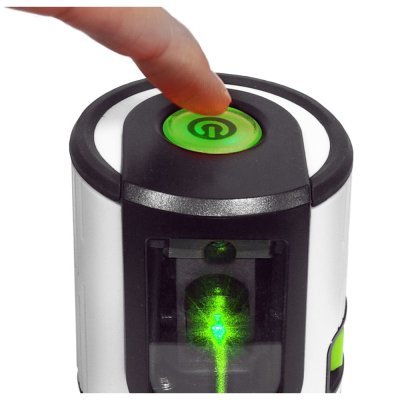

Time-saving automatic alignment

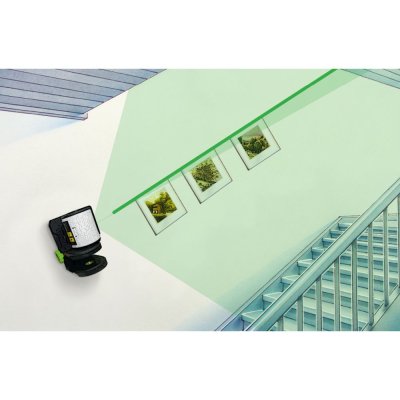

Easy alignment of slopes
Device issues warning when leaving the levelling range

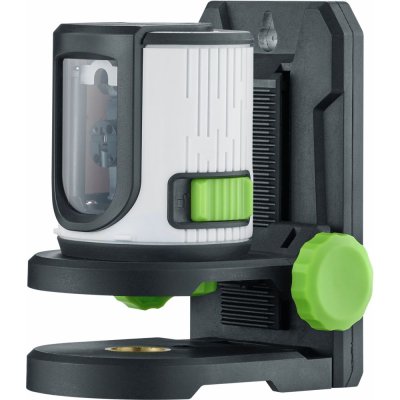

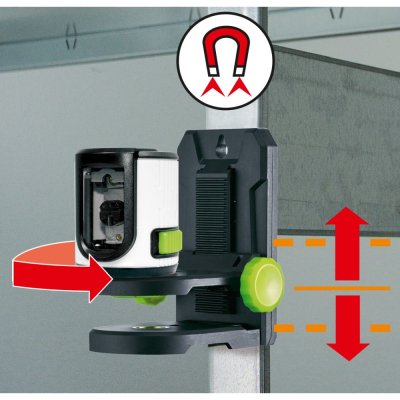

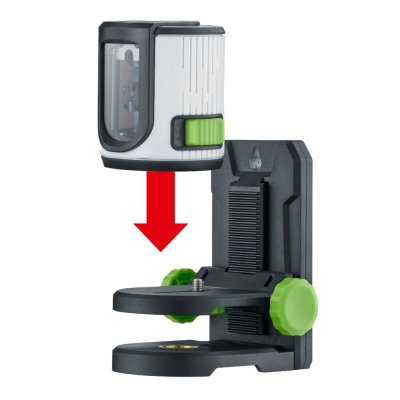

Multifunctional mount for attaching to tripods with 1/4” or 5/8” thread and to walls or metal structures
Pendulum restraint for safe transport

Horizontal/vertical levelling
✅
Manual slope function
✅
Battery operation
✅
Self-Levelling Range
± 3°
Accuracy
±0.5 mm/m
Levelling
automatic
Visibility (Typical)*
40 m
Laser Wavelength
515 nm
Laser Class
2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)

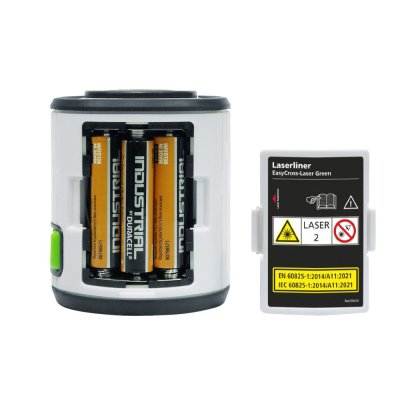

Power Supply
3 x 1.5V LR03 (AAA)
Operating Time
approx. 5 hours
Operating Conditions
0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
62 mm x 72 mm x 61 mm
Weight
202 g (inkl. Batterien / ohne Zubehör)

Scope of delivery: EasyCross-Laser Green
tripod/wall bracket
batteries
