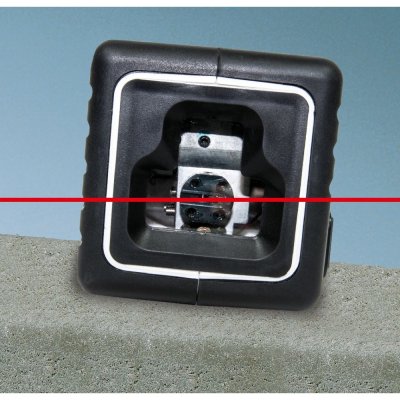

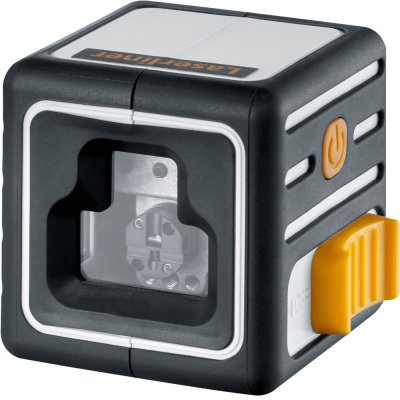

CompactCube-Laser 3

This automatic cross-line laser with PowerBright technology projects three bright, individually selectable laser lines. The two vertical lines are aligned perpendicular to each other. The device is perfect for aligning tiles, wall studding, windows or doors. The additional slope function allows angles to be precisely levelled. Optical signals indicate when the device is outside its self-levelling range. A pendulum restraint provides excellent protection during transportation. The small, compact design fits perfectly in any tool box and the ergonomic housing makes the device easy to use.

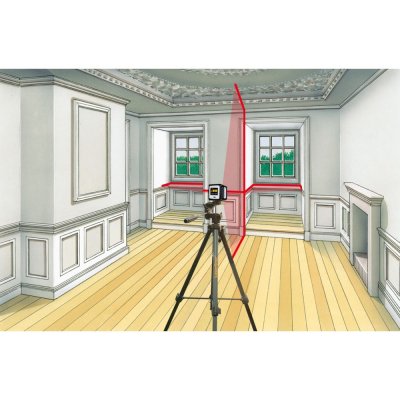

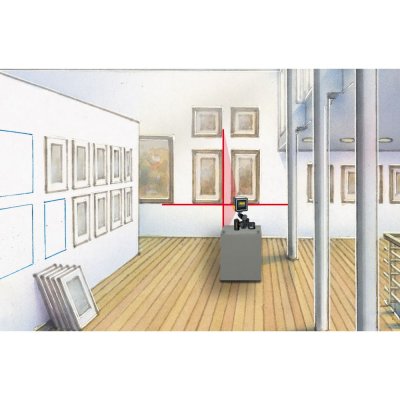

Three clearly visible laser lines, ideal for aligning tiles, wall studding, windows, doors

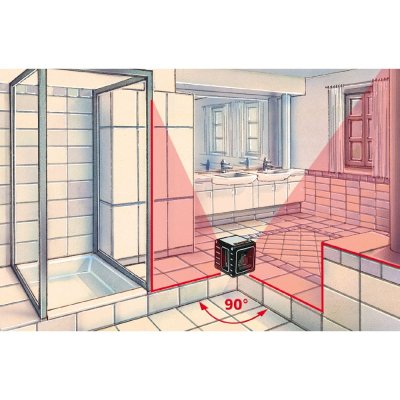

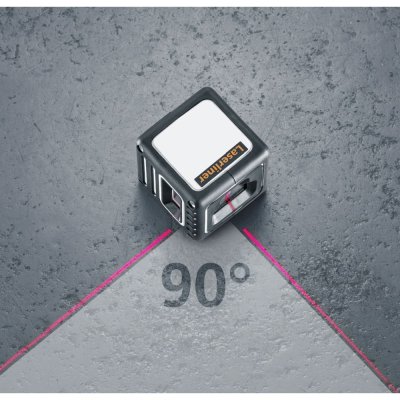

The two vertical laser lines are aligned perpendicular to each another

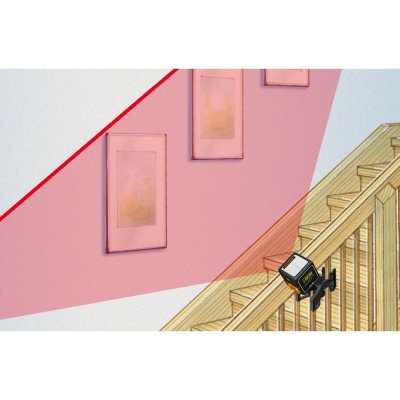

Additional slope function
Time-saving automatic alignment
Device issues warning when leaving the levelling range
Pendulum restraint for safe transport
Compact design, fits in any toolbox
Sturdy, ergonomically designed, rubberised casing

Horizontal/vertical levelling
✅
Manual slope function
✅
Battery operation
✅
Self-Levelling Range
± 3°
Accuracy
±0.5 mm/m
Levelling
automatic
Laser Wavelength
635 nm
Laser Class
2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Power Supply
3 x 1.5V LR03 (AAA)
Operating Time
with laser cross at front: approx. 20 hours / with all laser lines: approx. 9 hours
Operating Conditions
0°C … 40°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
69 mm x 69 mm x 65 mm
Weight
285 g (inkl. Batterien)

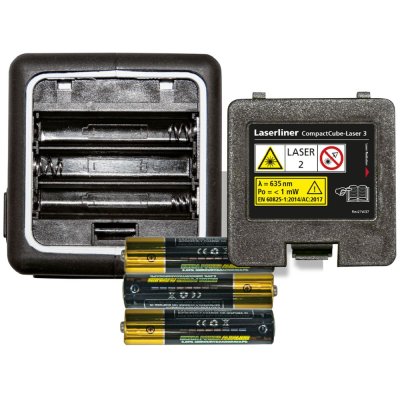

Scope of delivery: CompactCube-Laser 3
batteries
