CenterScanner Compact

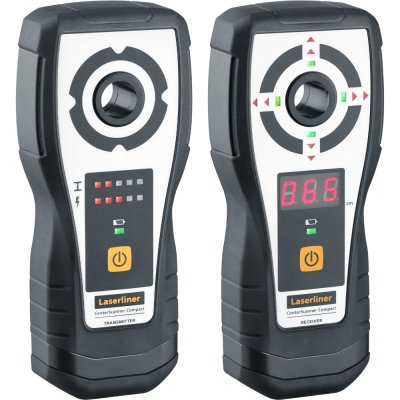

This highly accurate drill guide consists of a transmitter and a receiver and provides safe alignment of the drill channel when drilling through walls and ceilings up to a depth of 120 cm. Easily visible LED indicators and acoustic signals that can be switched off provide the location. Highly accessible marking aids in the sender and receiver provide the centring. The required drilling depth can be determined up to 150 cm using the integral LCD display. A visual and acoustic warning is sent when foreign objects are detected. The sender and receiver fit comfortably in the hand thanks to their ergonomic design.

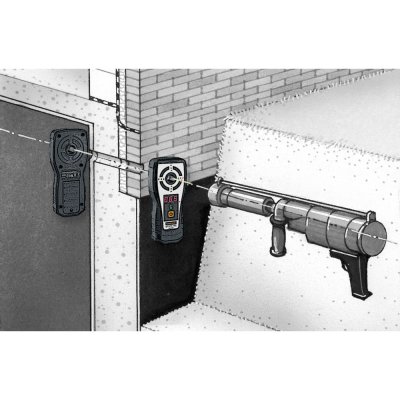

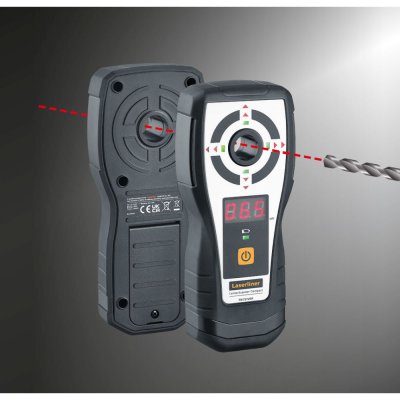

Easy and safe alignment of the drill channel when drilling through walls and ceilings up to a depth of 120 cm

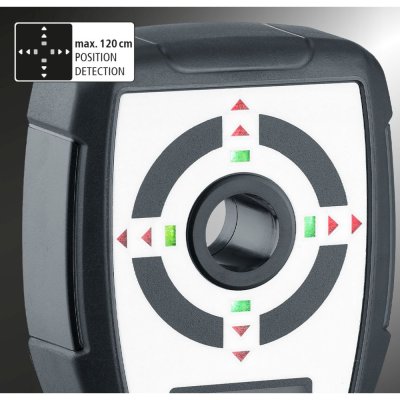

Precise location of the entry and exit points using LED indicators
Highly accessible marking aids in the sender and receiver provide the centring

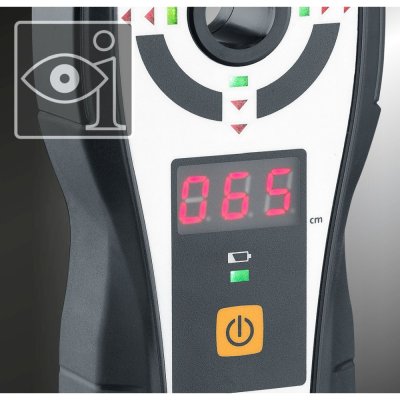

Determination of the required drilling depth up to 150 cm

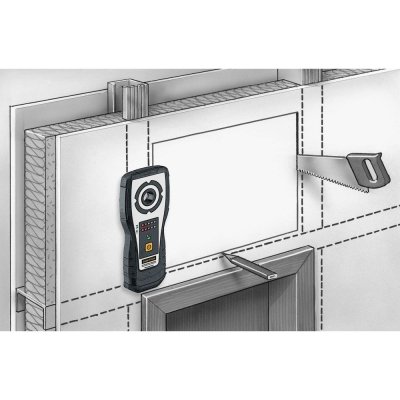

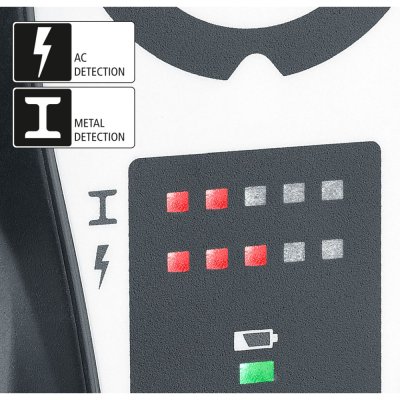

Optical and acoustic warning when foreign objects detected
The sender and receiver fit comfortably in the hand thanks to their ergonomic design

Operating instructions✅
Drill channel alignment✅
Wall thickness display✅
Measuring depth display✅

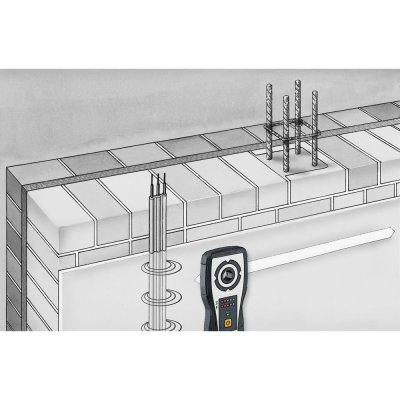

Warning for 230 V wires✅
Metal detection✅

Measuring Depth
Positioning RECV: 2 - 120 cm wall thickness
Depth display RECV: 2 - 150 cm drilling depth
Accuracy
typically 3% of measured depth
Detection Range AC
2 cm
Power Supply

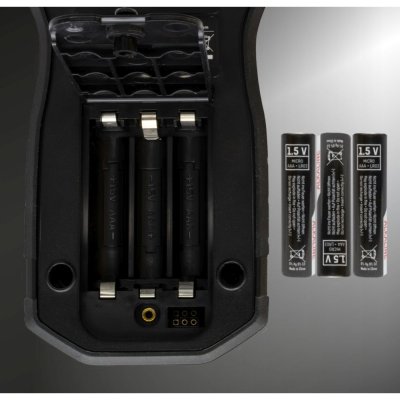

RECV: 3 x 1.5V LR03 (AAA) / TX: 3 x 1.5V LR03 (AAA)
Operating Time
RECV: approx. 20 hours / TX: approx. 12 hours
Operating Conditions
RECV: -30°C … 40°C / TX: -20°C … 40°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull)
Storage Conditions
-20°C … 60°C, Luftfeuchtigkeit max. 85% rH, nicht kondensierend
Dimensions (W x H x D)
77 mm x 179 mm x 31 mm
Weight
507 g (RECV und TX inkl. Batterien)

Scope of delivery: transmitter CenterScanner Compact TX
receiver RECV
adhesive kit
sliding pads (x4)
batteries
carrying case
