Duraplane Plus G360 Set 175 cm

The 360° hybrid laser projects a horizontal laser circle, two individually selectable vertical laser lines and offers a manual slope function. This hybrid laser is therefore perfectly suited to precise alignment in interior and exterior areas, for example when installing formwork for concrete floors, installing shelving in warehouses or building terraces. The Anti-Drift-System provides effective protection against levelling errors, which can be caused by unintended position changes. The set is completed by two powerful HighCapacityPacks with lithium-ion technology, the compact tripod 175 cm and the high-quality RangeXtender M70 receiver with millimetre display.

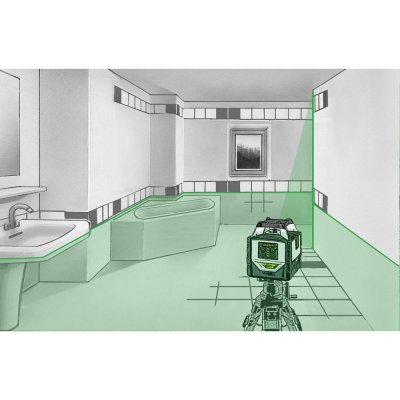

Exact and time-saving alignment of horizontals in the whole room with 360° laser circle
Two individually selectable laser lines for exact vertical alignment
Precise work through fine and extremely bright green laser line
Straightforward plumb function using upper laser cross and additional plumb laser

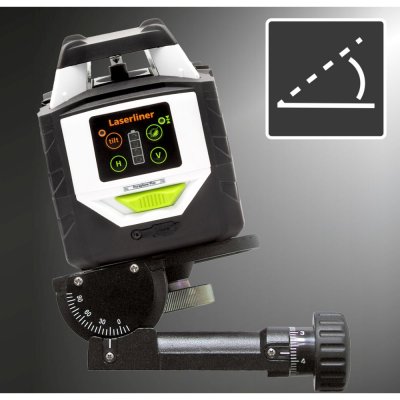

Manual slope function for simple levelling of gradients
Reliable measurement through warning of unwanted position changes
Long operating life due to two powerful HighCapacityPack with lithium-ion technology
Easy-to-read, coloured display for battery charge status
Can also run on mains power
IP 54: dust and splash proofing

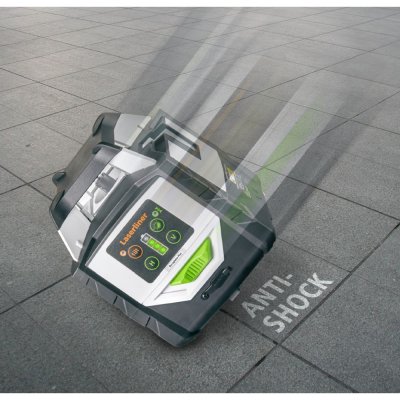

Extremely robust for tough applications
Integrated hand-held receiver mode for outdoor applications

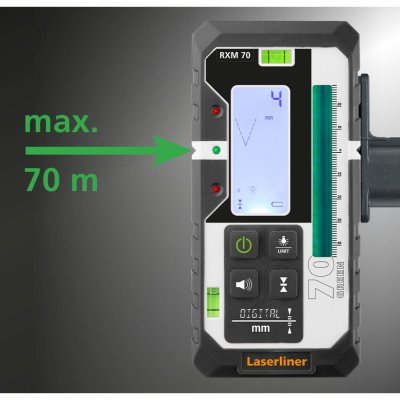

High-quality RangeXtender M70 receiver including millimetre display for precise reading of height differences to the laser plane

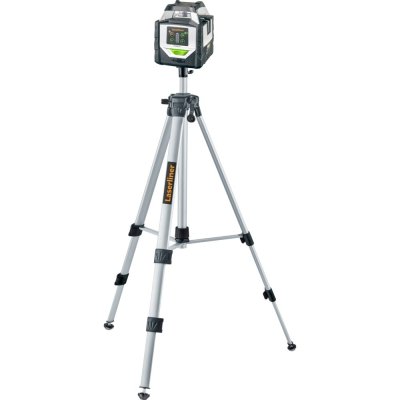

Crank tripod of aluminium
Easy-to-read, highly stable levelling staffs for use even under extreme conditions

horizontal/vertical/angle levelling✅
Hand receiver mode✅

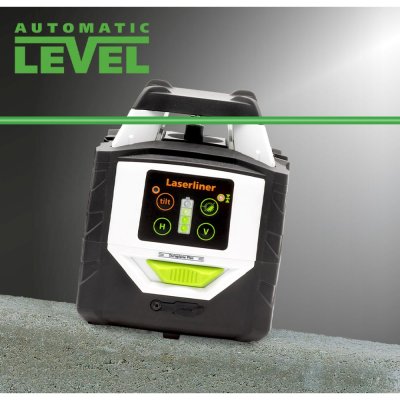

Automatic horizontal levelling✅
Battery and mains operation✅
Tilt warning function✅
Replaceable battery system✅

Self-Levelling Range
± 2.5°
Accuracy
±0.2 mm/m
Levelling
horizontal / vertical automatic
Laser Wavelength
515 nm
Laser Class
2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Laser Modes
Hand receiver mode
Laser Reception Range
max. 70 m
Protection Class
IP 54, dust and splash proofing
Power Supply
Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
Operating Time
approx. 9 hours
Battery Recharging Time
approx. 4 hours
Operating Conditions
0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
122 mm x 152 mm x 124 mm
Weight
884 g (inkl. Akkupack)

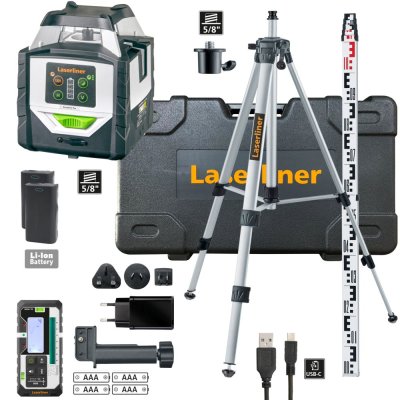

Scope of delivery: Duraplane Plus G360
RangeXtender M 70
compact tripod 175 cm
3 m telescopic levelling staff
5/8" thread adapter
2 x HighCapacityPack (Li-Ion)
network/charging device incl. international adapter
USB-C-cable
carrying case
