Cubus 110 S Set 150 cm

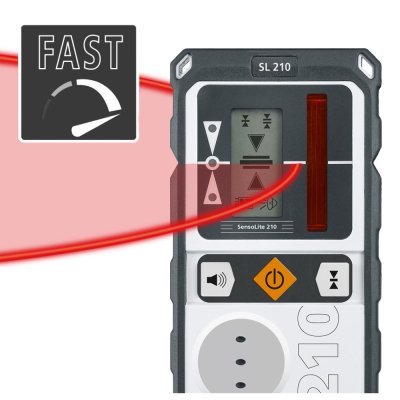

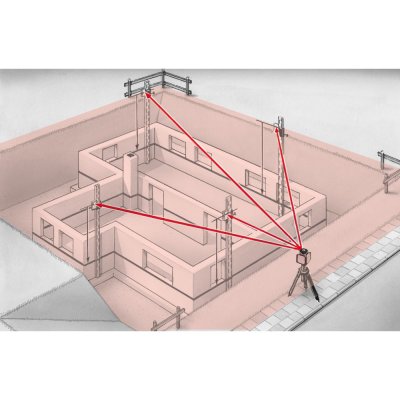

The sturdy, fully automatic rotary laser is perfect for precise alignment of horizontals. Furthermore, the device can be used for the levelling of verticals and slopes. Aligning partitions is easy thanks to an additional reference beam. The laser receiver can be easily attached to measuring staffs and allows a height reference to be marked. This has the advantage that the laser can be reset to the specified height at any time. The remote control for operating all of the functions at a distance of up to 40 metres is particularly handy. In the event of external influences, the automatic shut down prevents measurement errors. The HighCapacityPack with lithium-ion technology can be used and charged at the same time which means users can work without interruption.

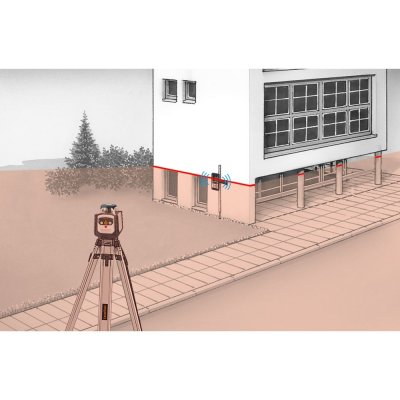

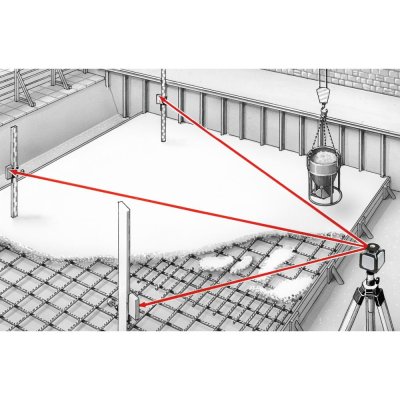

Precise alignment of horizontals

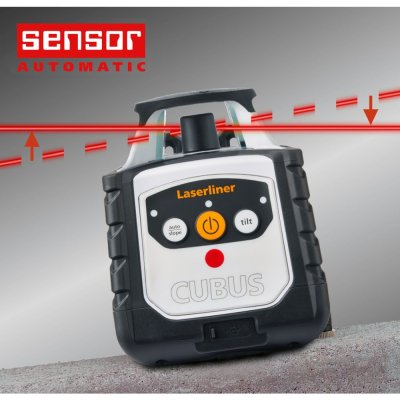

Time-saving fully automatic alignment by means of automatic sensor
Manual alignment of slopes

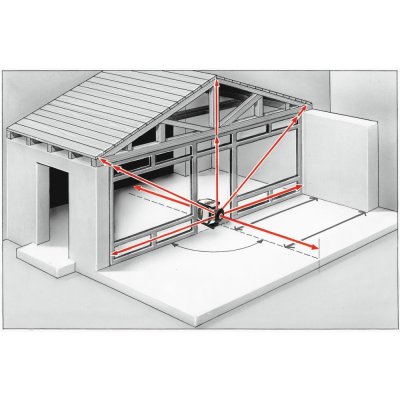

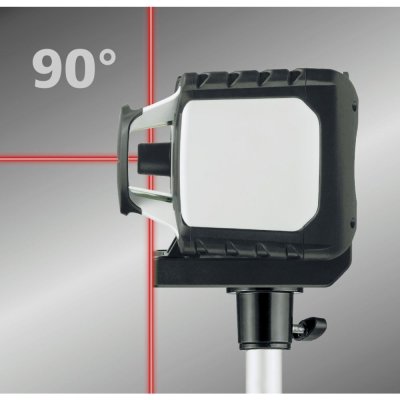

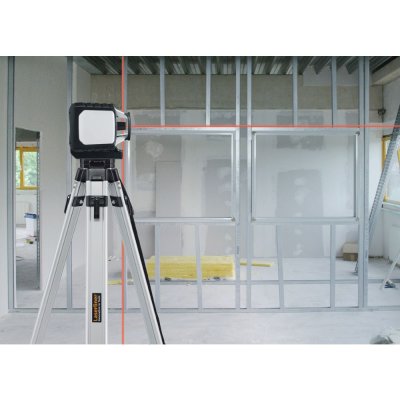

The 90° reference beam is provided to plumb and align partition walls
Long operating life due to powerful HighCapacityPack with lithium-ion technology
Extremely simple operation for practical use
All functions can be controlled with the remote control up to a max. distance of 40 m
Plug-on stand/wall bracket with 5/8“ thread for vertical use

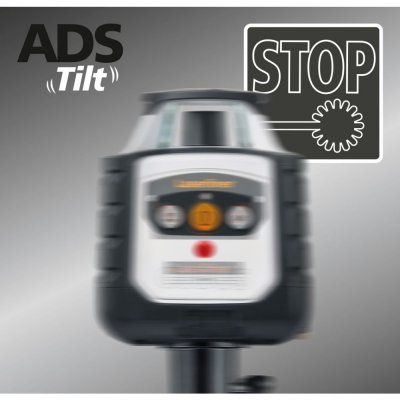

Reliable measurement through automatic power off with ADS tilt

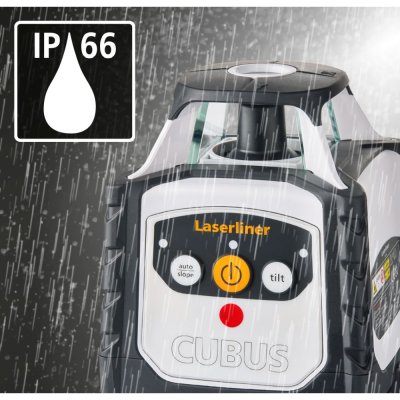

Waterproof housing
Transport LOCK: The device is protected by a special motor brake during transport
Laser modes: spot, scan, rotary and hand receiver mode
Work efficiently and charge the battery at the same time

horizontal/vertical/angle levelling
✅
Hand receiver mode
✅
Scan mode
✅
Spot mode
✅
Manual slope function
✅
Precision sensor levelling
✅
Battery and mains operation
✅
Anti-Drift-System (ADS)
✅
Tilt warning function
✅
Self-Levelling Range
± 4°
Accuracy
±0.15 mm/m
Levelling
automatic horizontal / vertical levelling with electronic levels and motors
Laser Wavelength
635 nm
Laser Class
2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Laser Modes
Hand receiver mode
Spot mode
Rotary mode
Scan mode
Laser Reception Range
1 - 100 m
Protection Class
IP 66
Power Supply
Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
Operating Time
approx. 20 hours
Battery Recharging Time
approx. 4 hours
Operating Conditions
-10°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
130 mm x 160 mm x 145 mm
Weight
1300 g (mit Stativ- und Wandhalterung)

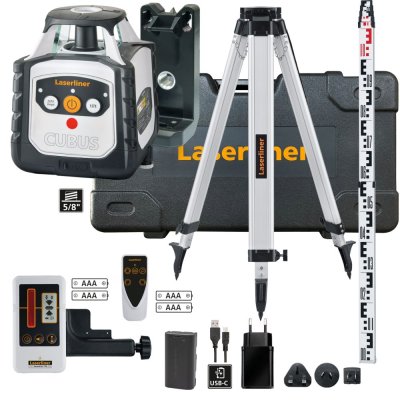

Scope of delivery: Cubus

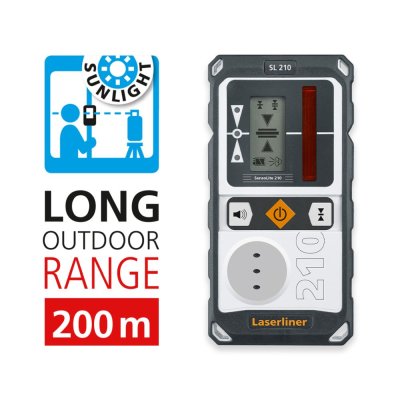

SensoLite 110

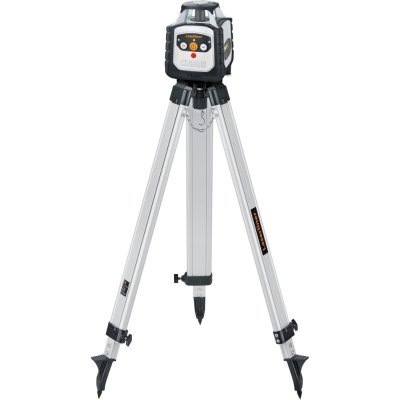

Light-weight tripod 150 cm
tripod/wall bracket
universal mount

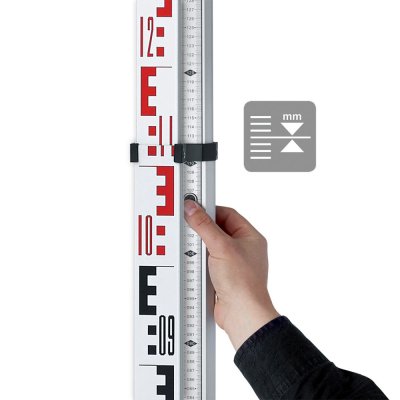

telescopic levelling staff LT 4 m
remote control
HighCapacityPack (Li-Ion)
batteries
network/charging device incl. international adapter
carrying strap
carrying case
