Cubus 210 S Set 150 cm

This long range, fully automatic rotary laser is ideal for excavation work. The robust device provides precise levelling of horizontals, verticals and slopes. A 90° reference beam provides plumb-lining and aligning for partitions. Available modes include spot, scan, rotary and hand-held receiver. The combination of light-weight tripod, laser receiver and measuring staff is ideal for determining and working with reference dimensions. All functions can be easily controlled with the remote control up to a maximum distance of 30 metres. In the event of external influences, the device shuts down automatically to prevent measurement errors. The battery pack can be used and charged at the same time which means users can work without interruption.

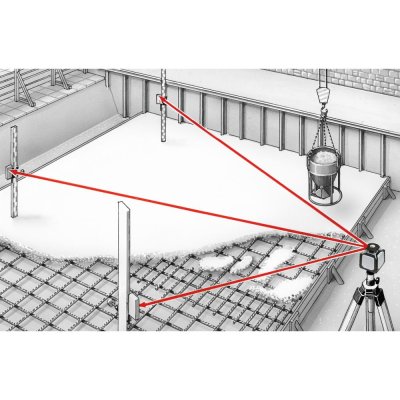

Exact horizontal and vertical alignment of objects

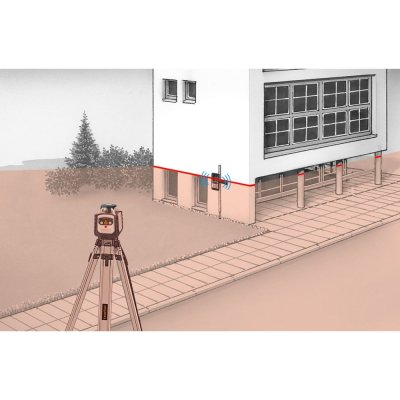

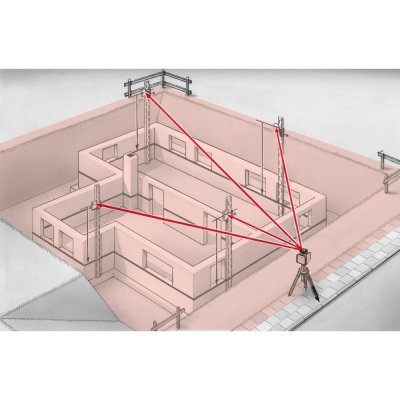

Long range, ideal for excavation work

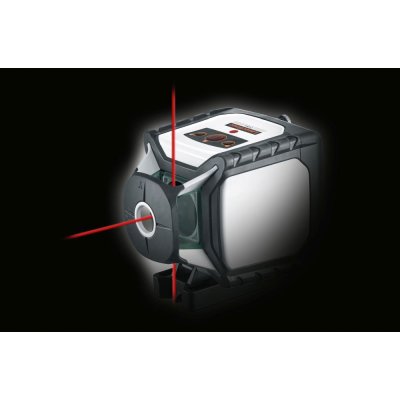

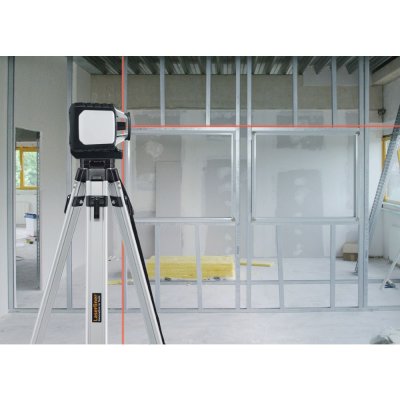

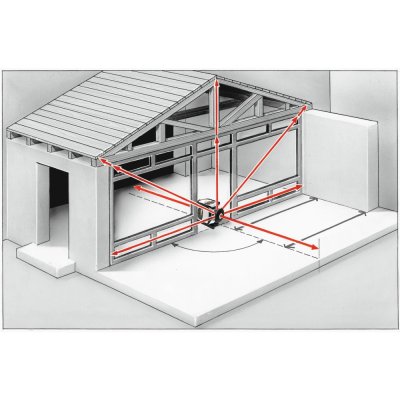

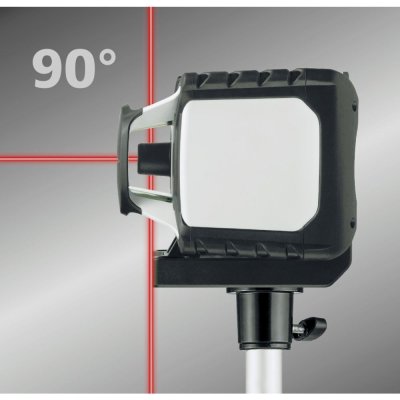

The 90° reference beam is provided to plumb and align partition walls

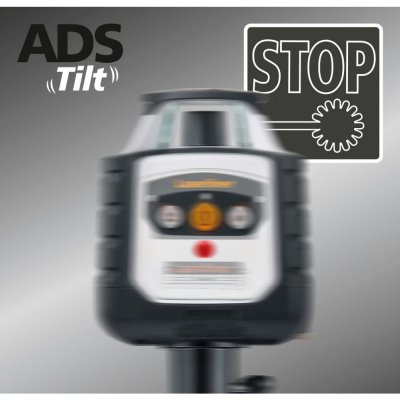

Reliable measurement through automatic power off with ADS tilt

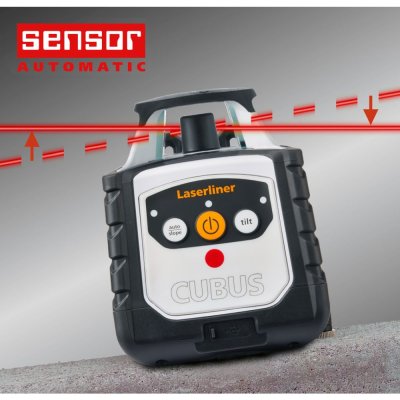

Time-saving fully automatic alignment by means of automatic sensor
Long operating life due to powerful HighCapacityPack with lithium-ion technology
Extremely simple operation for practical use
Manual alignment of slopes
Laser modes: spot, scan, rotary and hand receiver mode

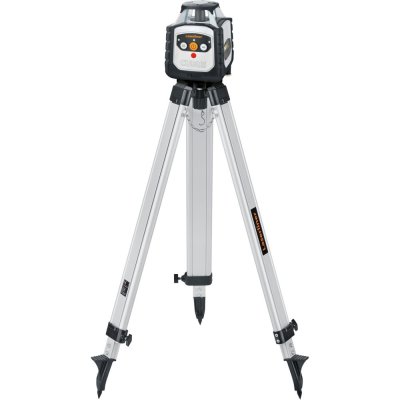

Simple installation of the measuring device with lightweight stand
Plug-on stand/wall bracket with 5/8“ thread for vertical use
Remote operation controls all functions from all sides up to max. 40 m
Work efficiently and charge the battery at the same time
LC display front and rear
Robust waterproof housing

Horizontal/vertical levelling
✅
Hand receiver mode
✅
Scan mode
✅
Spot mode
✅
Manual slope function
✅
Precision sensor levelling
✅
Battery and mains operation
✅
Anti-Drift-System (ADS)
✅
Tilt warning function
✅
Self-Levelling Range
± 4°
Accuracy
±0.15 mm/m
Levelling
automatic horizontal / vertical levelling with electronic levels and motors
Laser Wavelength
635 nm
Laser Class
2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Laser Modes
Hand receiver mode
Spot mode
Rotary mode
Scan mode
Protection Class
IP 66
Power Supply
Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
Operating Time
approx. 20 hours
Battery Recharging Time
approx. 4 hours
Operating Conditions
-10°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
130 mm x 160 mm x 145 mm
Weight
1300 g (mit Stativ- und Wandhalterung)

Scope of delivery: Cubus

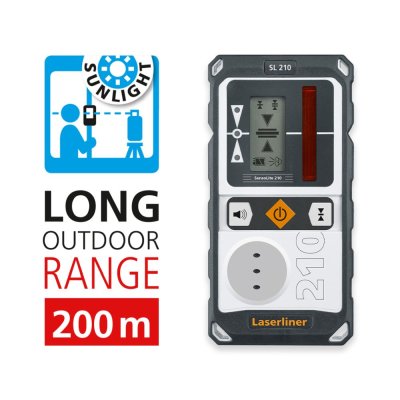

SensoLite 210
Light-weight tripod 150 cm
tripod/wall bracket
universal mount

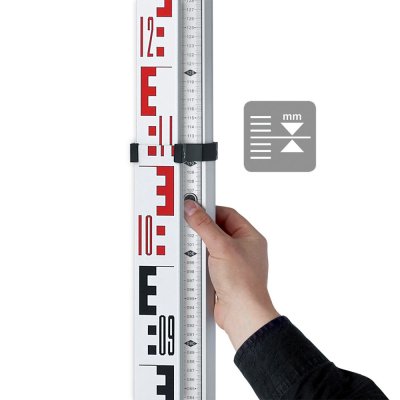

telescopic levelling staff LT 4 m
remote control
HighCapacityPack (Li-Ion)
batteries
network/charging device incl. international adapter
carrying strap
carrying case
