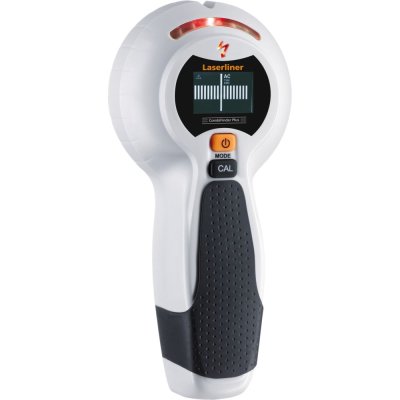

CombiFinder Plus

This electronic detector reliably detects metals and the position and layout of live conductors. This helps to avoid the unnecessary drilling of holes and to identify potential risks. Clear signals inform the user when he is detecting objects. The permanent voltage warning ensures a high level of safety at work. The housing of the detector is made from a large proportion of recycled plastic and makes a valuable contribution to sustainability.

Sustainable design: large proportion of the housing is made from recycled plastic
Effective location of metals such as reinforcing steel, heating pipes and water lines

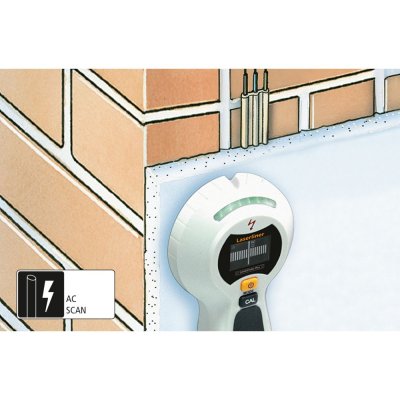

Exact location of the position and layout of live cables
Clear visual and acoustic signals when detecting objects

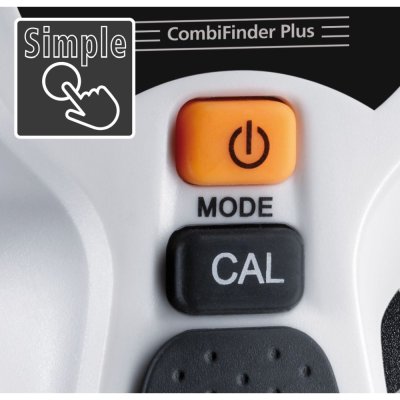

Simple and reliable application thanks to user guide on LC display

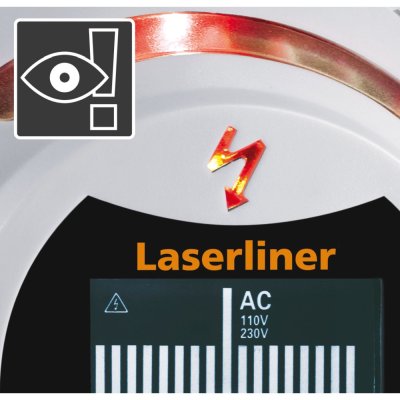

High level of safety through permanent voltage warning
Device adapts to the ground surface immediately after power on

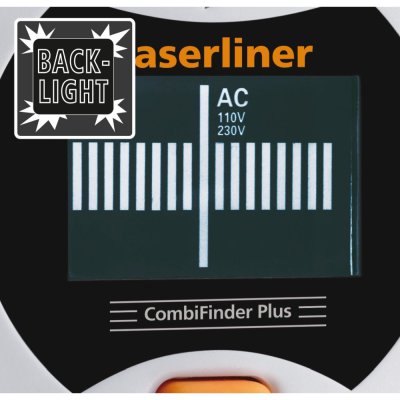

Easy-to-read display

Operating instructions
✅
Autocalibration
✅
Specific metal detection (iron/copper)
✅
Locate live wires
✅
Warning for 230 V wires
✅

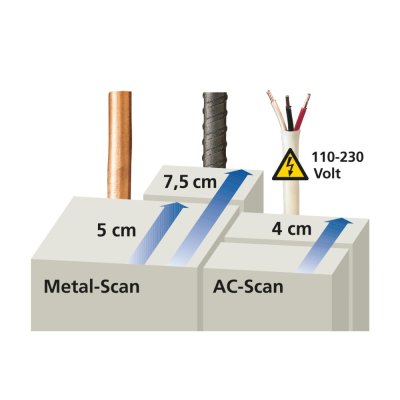

Measuring Depth
Targeted location of live supply lines (AC-SCAN): up to 4 cm depth
Targeted metal location: Ferro-Scan / Non-Ferro-Scan (METAL-SCAN): up to 7.5 cm / up to 5 cm depth
Location of dead supply lines: up to 4 cm depth
Detection Range AC
110 - 230V, 50 - 60 Hz
Power Supply
1 x 9V 6LR61 (9V block)
Operating Time
approx. 7 hours
Operating Conditions
0°C … 40°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull)
Storage Conditions
-20°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
85 mm x 180 mm x 38 mm
Weight
180 g (inkl. Batterie)

Scope of delivery: CombiFinder Plus
battery
