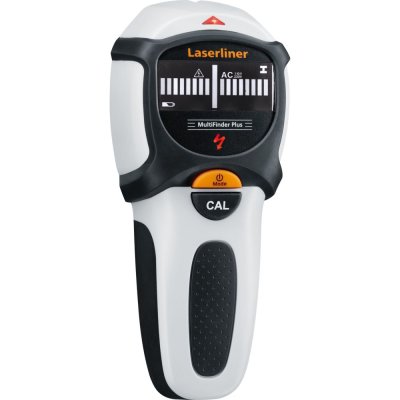

MultiFinder Plus

This universal detector is suitable for locating wood, metal, copper, iron and live wires To save time, it adapts to the ground surface immediately after power on The user guide on the illuminated LC display makes the instrument easy to use. The permanent voltage warning ensures a high level of safety. A special feature: in metal mode, it is able to detect concealed lines even when they are not live. The housing of the detector is made from a large proportion of recycled plastic and makes a valuable contribution to sustainability.

Sustainable design: large proportion of the housing is made from recycled plastic
Effective location of live and non-live cables, metal, copper, iron and wood
Device adapts to the ground surface immediately after power on

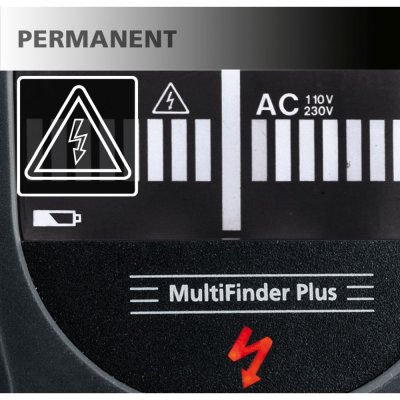

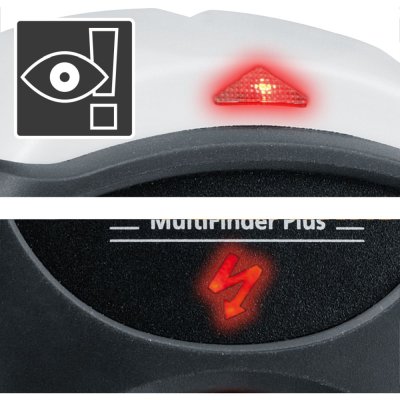

High level of safety through permanent voltage warning
Clear visual and acoustic signals when detecting objects

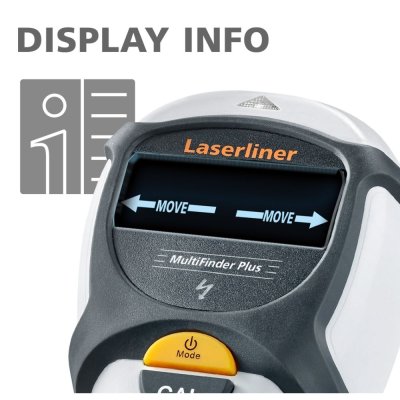

Simple and reliable application thanks to user guide on LC display

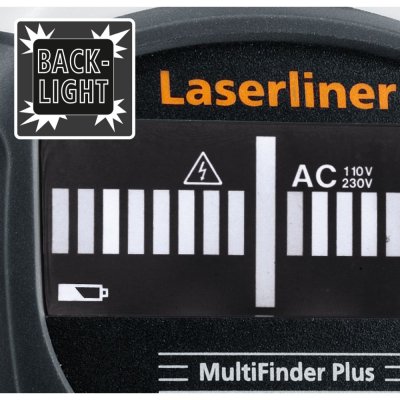

Easy-to-read display

Operating instructions
✅

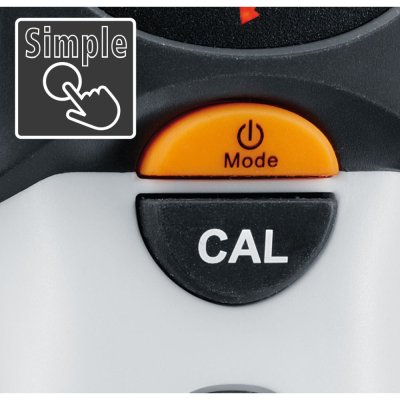

Autocalibration
✅
Metal detection
✅
Specific metal detection (iron/copper)
✅

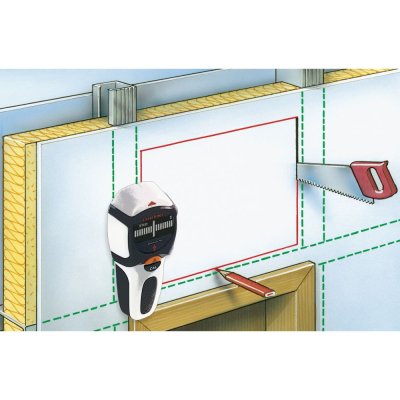

Identify supporting structures (metal/wood)
✅
Locate live wires
✅
Warning for 230 V wires
✅

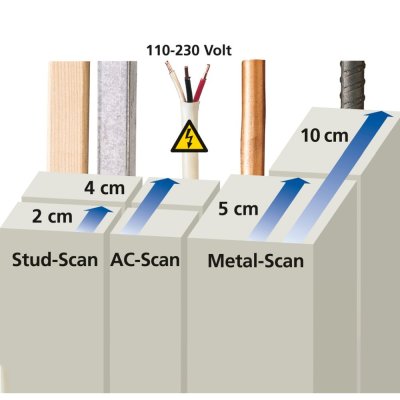

Measuring Depth

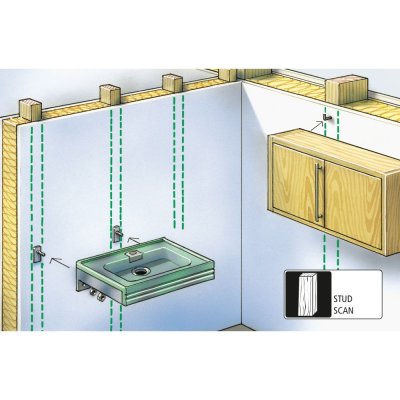

Wood / metal beam location (STUD-SCAN): up to 4 cm depth

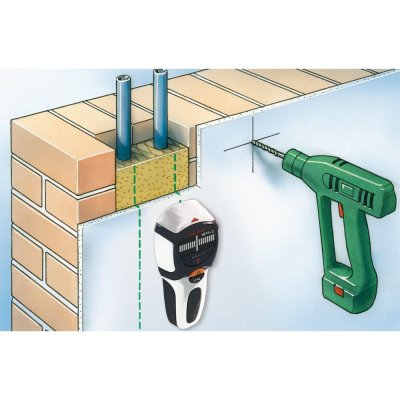

Targeted metal location: Ferro-Scan / Non-Ferro-Scan (METAL-SCAN): up to 10 cm / up to 5 cm depth

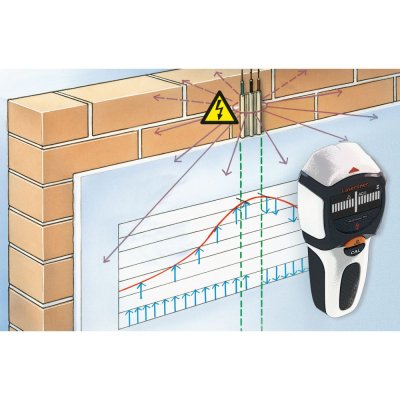

Targeted location of live supply lines (AC-SCAN): up to 4 cm depth
Location of dead supply lines: up to 4 cm depth
Detection Range AC
110 - 230V, 50 - 60 Hz
Power Supply

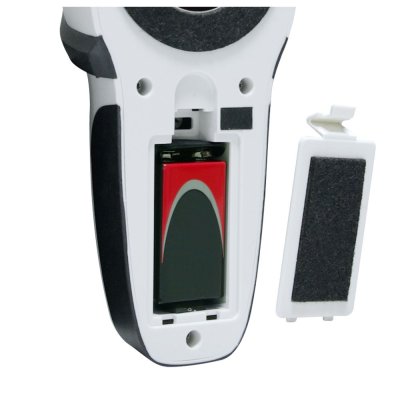

1 x 9V 6LR61 (9V block)
Operating Time
approx. 5 hours
Operating Conditions
0°C … 40°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull)
Storage Conditions
-20°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
80 mm x 186 mm x 40 mm
Weight
230 g (inkl. Batterie)

Scope of delivery: MultiFinder Plus
battery
