VideoPocket

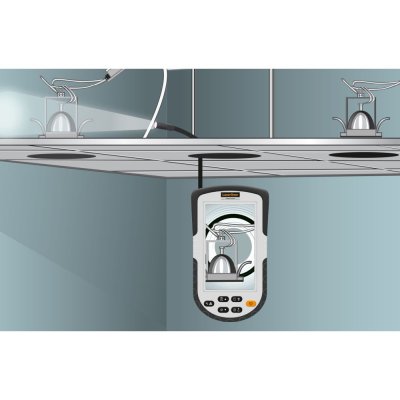

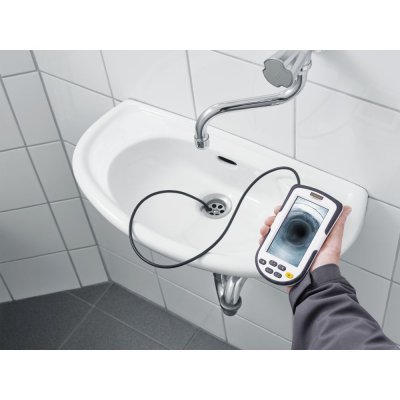

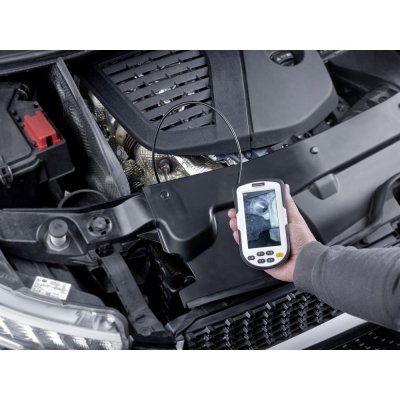

This compact video inspection system allows easy visual inspection of hard-to-reach locations such as pipework, suspended ceilings and vehicles. Six powerful LEDs on the waterproof camera unit, adjustable in ten settings, ensure effective illumination of the object during use. Details can be clearly captured using the zoom function. Inspection results are clearly identifiable thanks to the large colour display and image alignment. The compare image function allows the user to see the differences between the live image and a saved reference image. The housing is largely made of recycled material and makes a valuable contribution to sustainability

Sustainable design: large proportion of the housing is made from recycled plastic

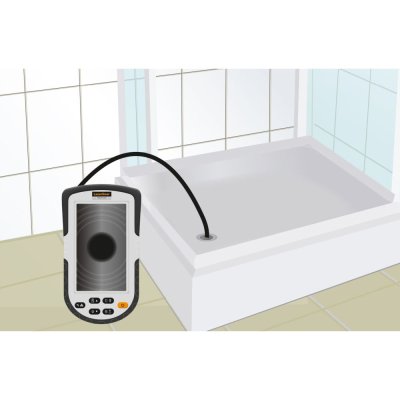

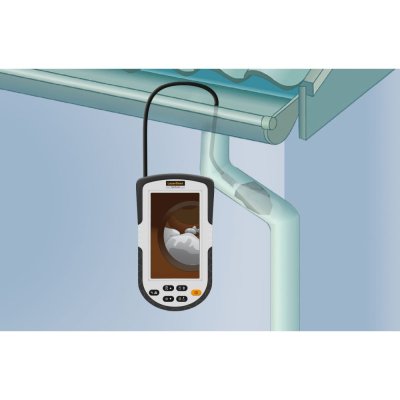

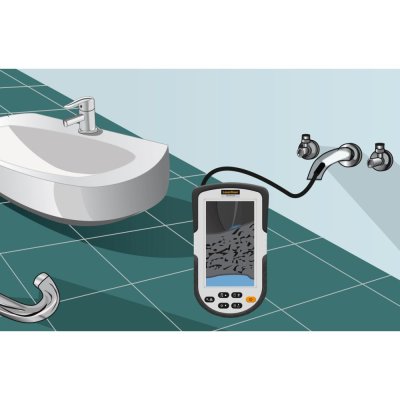

Effective problem localisation behind or in objects, walls, pipes, cavities
Identify specific differences with the compare image function

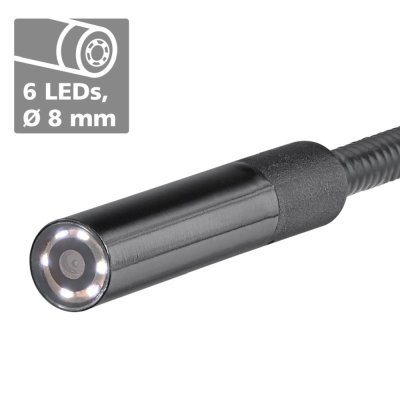

Powerful object lighting thanks to six high-performance LEDs
Large, exceptionally easy-to-read display

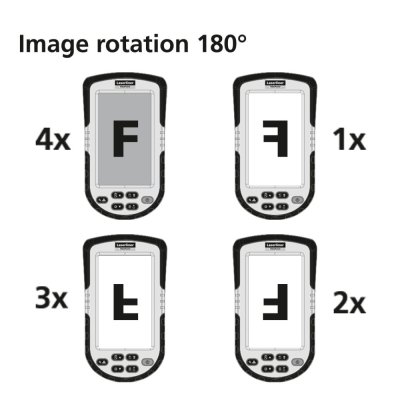

Suitable image available on the monitor through rotation and mirroring
Waterproof and dustproof camera unit
Magnet, mirror and hook mount for fixing on the camera head
Pull/lift difficult to reach objects
Mirror allows objects to be viewed at 90° angle
Evaluation and documentation using internal photo memory and micro SD card
Compact design

Live display
✅
Image/video recording
✅
Image/video playback
✅
Internal image memory
✅
Image comparison
✅
Object illumination
✅
Image alignment
✅
Digital zoom
✅
Data transfer
✅
Diameter Camera Head
8 mm
Camera Resolution
640 x 480 pixels
Field of View (FOV)
65°
Depth of Focus (DOF)
3 … 8 cm
Screen Type
4,3"
Display Resolution
480 x 272 pixels
Image Format
JPEG
Length of Probe
1 m
Illumination
10 brightness levels
Digital Zoom
2x digital zoom in 25% increments
Memory
Micro-SD memory card up to 32 GB
Port
Micro USB
Ports
Micro USB
Power Supply
4 x 1.5V LR6 (AA)
Dimensions (W x H x D)
85 mm x 155 mm x 32 mm
Weight
366 g (inkl. Batterien)

Scope of delivery: VideoPocket
TopClips
batteries
softbag
