MultiFinder Pro

This universal detector reliably locates metal, iron, copper, wood and live wires. The MultiFinder Pro adapts directly to different surfaces, offers reliable drilling, and is suitable for cavity location. It is even able to detect wires underneath plaster when they are not live. Acoustic and optical signals clearly show when items have been located. A permanent voltage warning protects the user. The device is convenient to use due to easy, one-button switching between different measuring modes and the operating instructions on the LC display.

Electronic Scanner for wood, metal and wiring
Locating hidden cables
Reliable drilling
Locating cavities
Locating metal

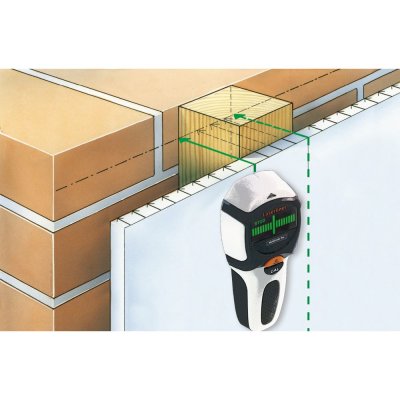

Locating posts and beams
Auto-Calibration: adjusts the device to different surfaces immediately
Auto-Cal Plus: allows objects to be isolated easily in addition

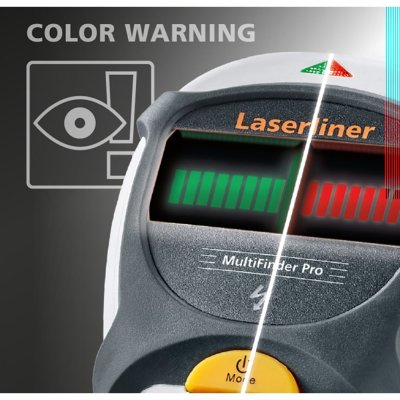

Clear visual and acoustic signals when detecting objects

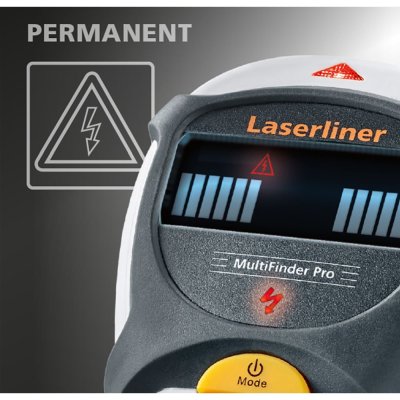

High level of safety through permanent voltage warning

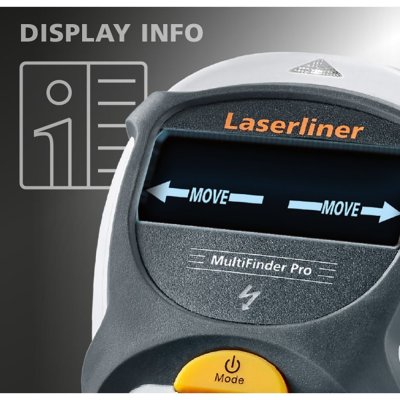

Operating instructions
✅
Autocalibration
✅
Metal detection
✅
Specific metal detection (iron/copper)
✅
Identify supporting structures (metal/wood)
✅

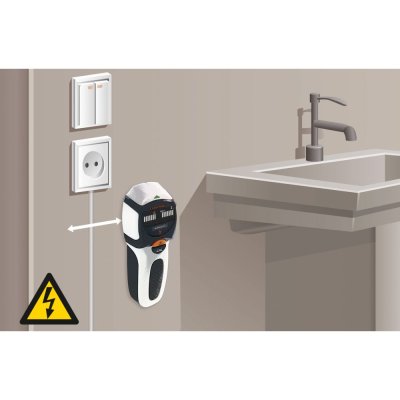

Locate live wires
✅
Warning for 230 V wires
✅

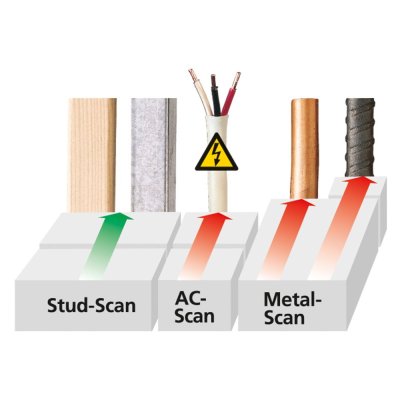

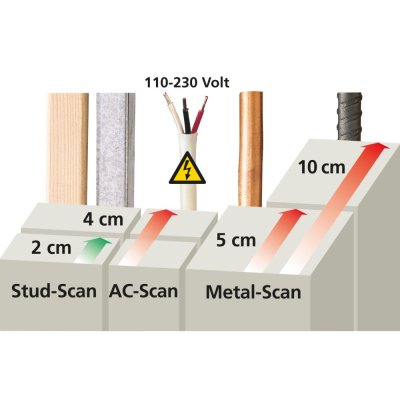

Measuring Depth
Wood / metal beam location (STUD-SCAN): up to 4 cm depth
Targeted location of live supply lines (AC-SCAN): up to 4 cm depth
Targeted metal location: Ferro-Scan / Non-Ferro-Scan (METAL-SCAN): up to 10 cm / up to 5 cm depth
Location of dead supply lines: up to 4 cm depth
Detection Range AC
110 … 230V, 50 … 60 Hz
Power Supply
1 x 9V 6LR61 (9V block)
Operating Time
approx. 3 hours
Operating Conditions
0°C … 40°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull)
Storage Conditions
-20°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
80 mm x 186 mm x 40 mm
Weight
230 g (inkl. Batterie)

Scope of delivery: MultiFinder Pro
battery
softbag
