CenterScanner Plus

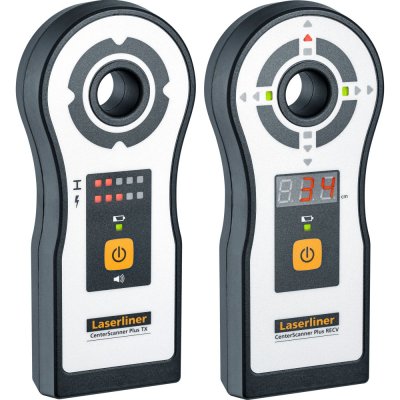

This highly accurate drill guide consists of a transmitter and a receiver and provides safe alignment of the drill channel when drilling through walls and ceilings up to 150 cm. Easily visible LED indicators and acoustic signals provide the location. Highly accessible marking aids in the sender and receiver provide the centring. The required drilling depth can be determined up to 200 cm using the integral LCD display. The TX sender with metal and voltage detection effectively prevents drilling errors. A visual and acoustic warning is sent when foreign objects are detected.

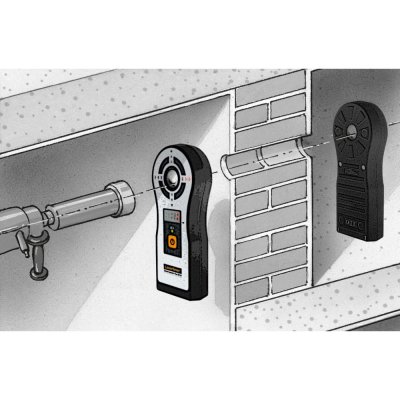

Simple and precise alignment of the drill channel

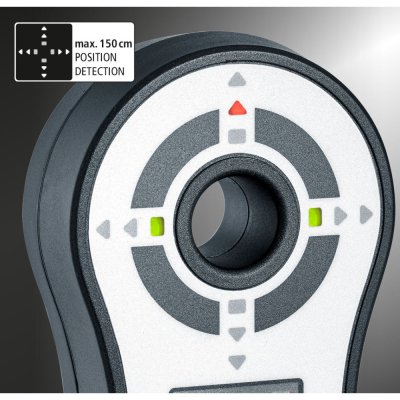

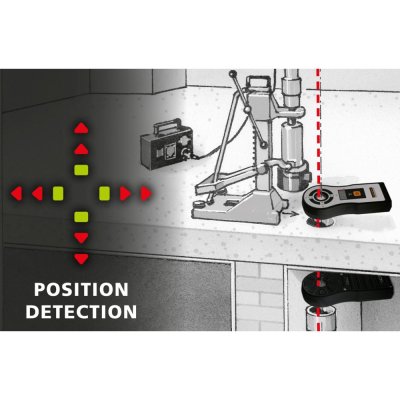

Precise location of the entry and exit points using LED indicators
Highly accessible marking aids in the sender and receiver provide the centring
Determination of the required drilling depth up to 200 cm

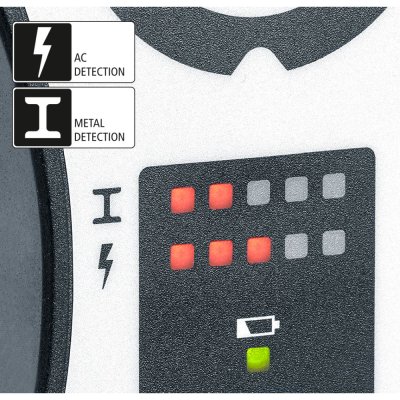

TX receiver with integral metal and voltage detection to avoid drilling errors
Optical and acoustic warning when foreign objects detected

Operating instructions
✅
Metal detection
✅

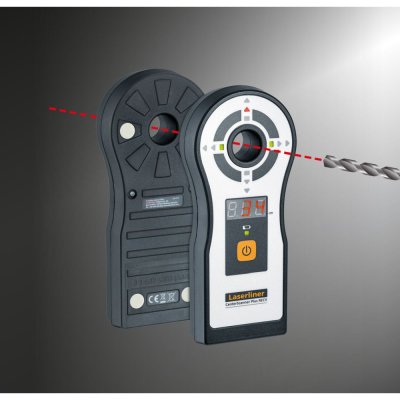

Drill channel alignment
✅
Wall thickness display
✅

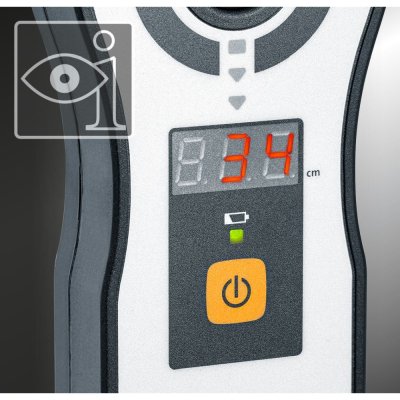

Measuring depth display
✅
Warning for 230 V wires
✅
LED Display
RECV: 3 x 7 segments
Measuring Depth
Positioning RECV: 2 - 150 cm wall thickness
Depth display RECV: 2 - 200 cm drilling depth
Accuracy
typically 3% of measured depth
Detection Range AC
2 cm
Power Supply
RECV: 3 x 1.5V LR03 (AAA) / TX: 3 x 1.5V LR03 (AAA)
Operating Time
RECV: approx. 20 hours / TX: approx. 12 hours
Operating Conditions
RECV: -30°C … 40°C / TX: -20°C … 40°C, Luftfeuchtigkeit max. 85% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull)
Storage Conditions
-20°C … 60°C, Luftfeuchtigkeit max. 85% rH
Dimensions (W x H x D)
75 mm x 172 mm x 28 mm
Weight
410 g (RECV und TX inkl. Batterien)

Scope of delivery: Sender CenterScanner Plus TX
receiver RECV
adhesive kit
sliding pads (x4)
batteries
carrying case
