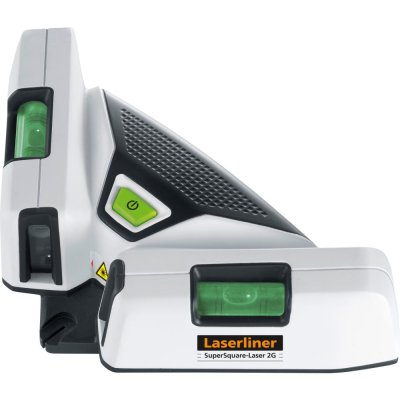

SuperSquare-Laser 2G

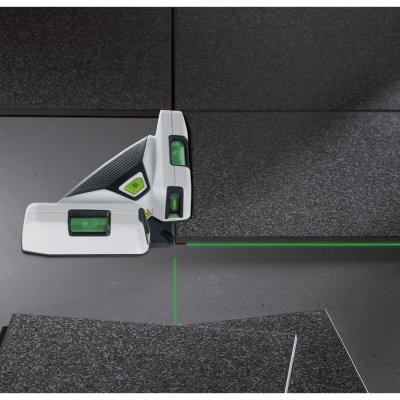

Description: This 90° line laser is ideal for laying wall and floor tiles. Both the projected lines are clearly visible due to the green laser technology. The attached lay edges and contact surface make it easy to position floor tiles. The special pins allow the device to be securely positioned on surfaces such as finishing coats, carpets, wood and veneers. Integral vials allow the device to be adjusted – these can also be used a spirit level. The housing of the laser is made from a large proportion of recycled plastic and makes a valuable contribution to sustainability.

Sustainable design: large proportion of the housing is made from recycled plastic

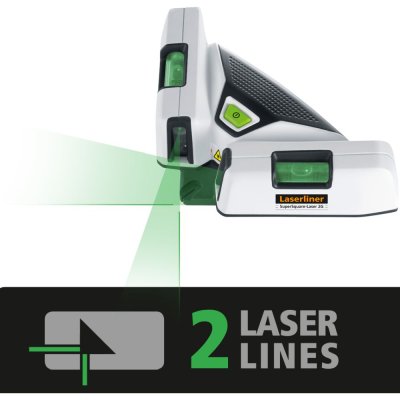

The 2 clearly visible laser lines are ideally suited for aligning tiles

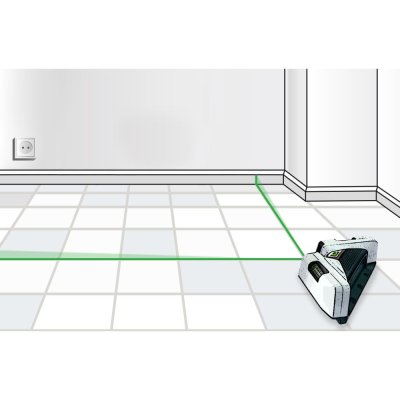

Suitable for use on floors and walls

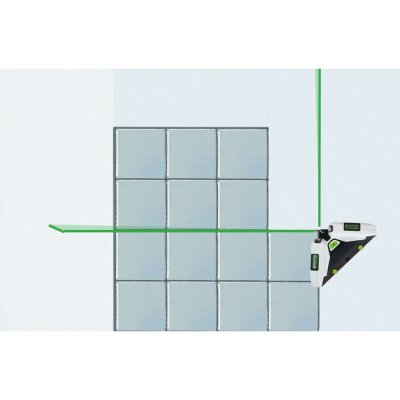

Vertical and horizontal levelling on walls

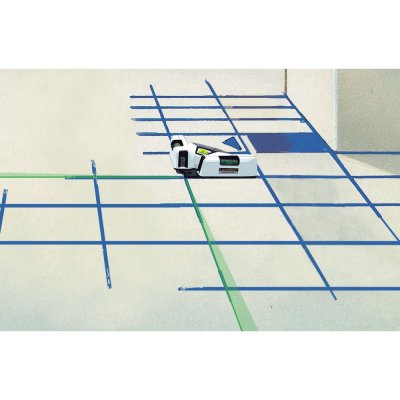

The applied lay edges and contact surface make it easy to position floor tiles

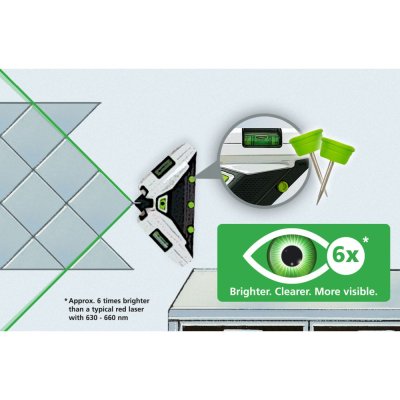

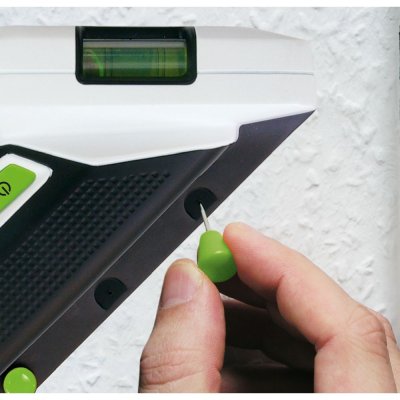

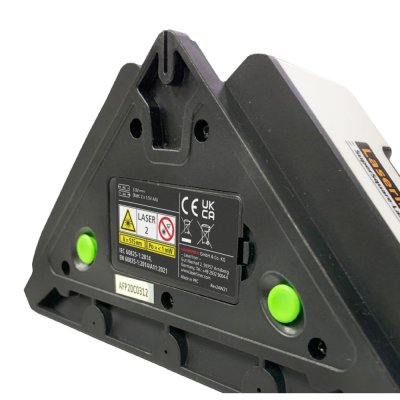

Special pins allow the device to be positioned on surfaces such as finishing coats, carpets, wood, veneered surfaces etc.
Bubble levels for adjustment

Horizontal/vertical levelling
✅
Manual slope function
✅
Battery operation
✅
Levelling
manual
Visibility (Typical)*
40 m
Laser Wavelength
515 nm
Laser Class
2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Power Supply
2 x 1.5V LR6 (AA)
Operating Time
approx. 3 hours
Operating Conditions
0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
200 mm x 48 mm x 100 mm
Weight
350 g (inkl. Batterien)

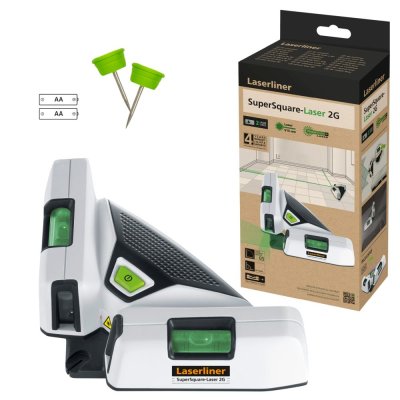

Scope of delivery: SuperSquare-Laser 2G
pins
batteries
