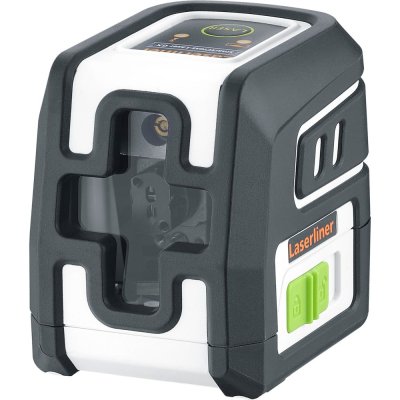

SmartCross-Laser GX

Description: This cross-line laser projects a highly visible green laser cross for precise horizontal and vertical alignment of objects. It also offers a manual slope function for easy creation of gradients and a 1/4” thread for mounting on a tripod. The laser can also be used for outdoor applications and alignment work at long distances with the integrated hand-held receiver mode. The housing of the laser is made from a large proportion of recycled plastic and makes a valuable contribution to sustainability.

Sustainable design: large proportion of the housing is made from recycled plastic

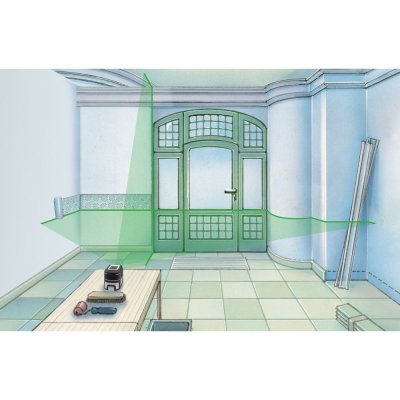

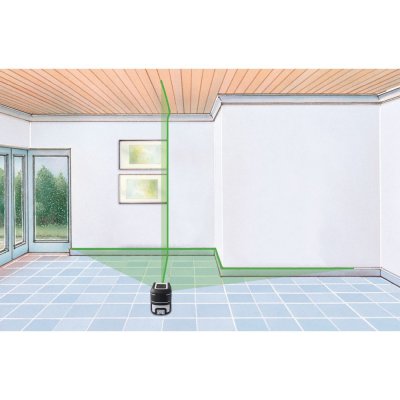

Accurate horizontal and vertical alignment of objects
Good visibility through green laser technology
Easy alignment of slopes with manual tilt function
Time-saving automatic alignment
Integrated hand-held receiver mode for outdoor applications
Visual signals indicate when the device is outside its self-levelling range
Pendulum restraint for safe transport

Horizontal/vertical levelling
✅
Manual slope function
✅
Battery operation
✅
Hand receiver mode
✅
Self-Levelling Range
± 4°
Accuracy
±0.3 mm/m
Levelling
automatic
Visibility (Typical)*
40 m
Laser Wavelength
515 nm
Laser Class
2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Power Supply
2 x 1.5V LR6 (AA)
Operating Time
approx. 6 hours
Operating Conditions
-10°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-20°C … 70°C, Luftfeuchtigkeit max. 85% rH
Dimensions (W x H x D)
84 mm x 76 mm x 62 mm
Weight
276 g (inkl. Batterie)

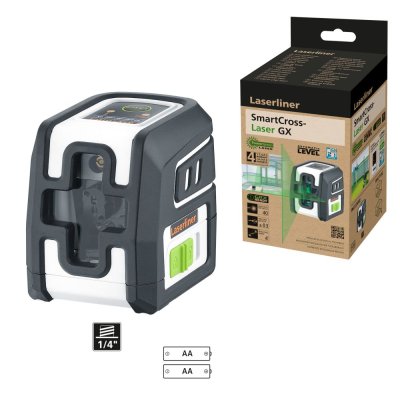

Scope of delivery: SmartCross-Laser GX
batteries
