VarioStand L 180 cm

Description: This high-quality aluminium tripod allows laser measuring instruments with a 1/4” and 5/8” thread to be set up safely and accurately, irrespective of the ground surface. The extendable center column, the combination tips (rubber/steel), and the adjustable tripod legs enable precise alignment.

Exact and reliable installation of laser measuring instruments

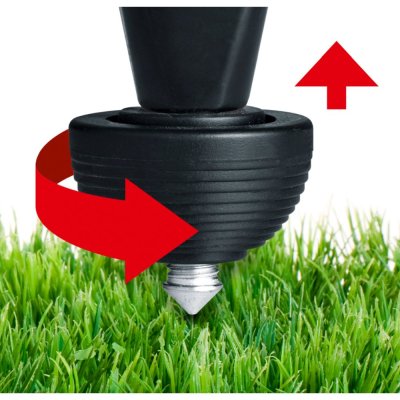

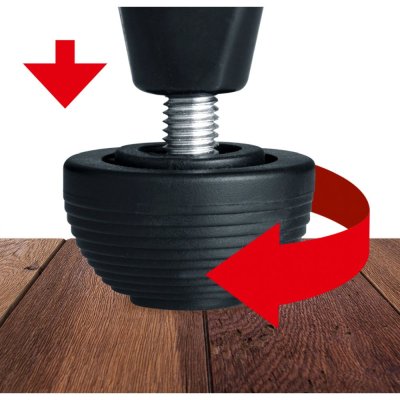

Easily adaptable to the ground surface thanks to combined rubber and steel tips
Extendable center column and adjustable tripod legs

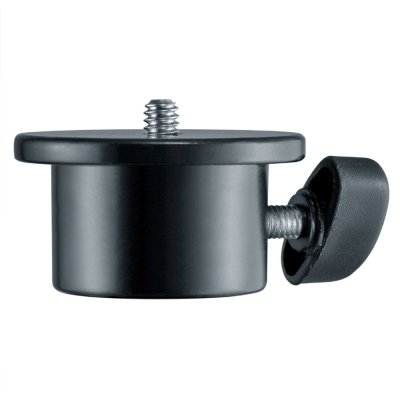

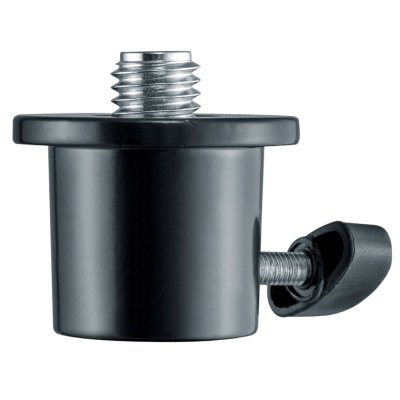

With adapter for mounting devices with 1/4" and 5/8" thread

Material
Aluminum
Max. Load Capacity
8 kg
Max. Height
1800 mm
Min. Height
930 mm
Tripod Connection
1/4" / 5/8" thread
Operating Conditions
-10°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-20°C … 70°C, Luftfeuchtigkeit max. 85% rH
Dimensions (W x H x D)
200 mm x 930 mm x 200 mm
Weight
3600 g (ohne Zubehör)

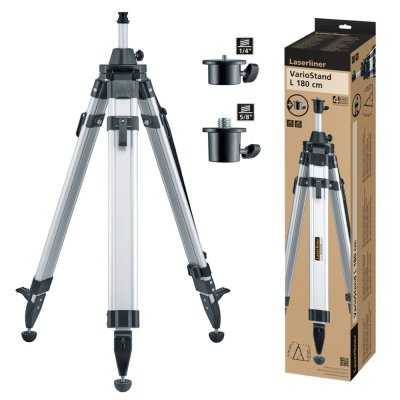

Scope of delivery: VarioStand L 180 cm
1/4” and 5/8” thread adapter
