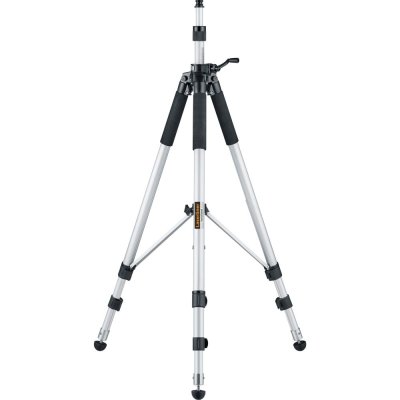

VarioStand L 300 cm

Description: This high-quality aluminium tripod allows laser measuring instruments with a 1/4” and 5/8” thread to be set up safely and accurately, irrespective of the ground conditions. The crank stroke, the combined tips (rubber/steel) and the telescopic tripod legs provide accurate adjustment.

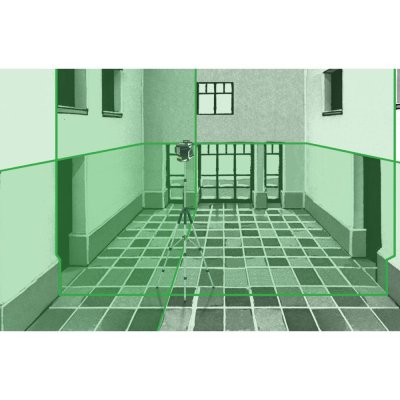

Exact and reliable installation of laser measuring instruments

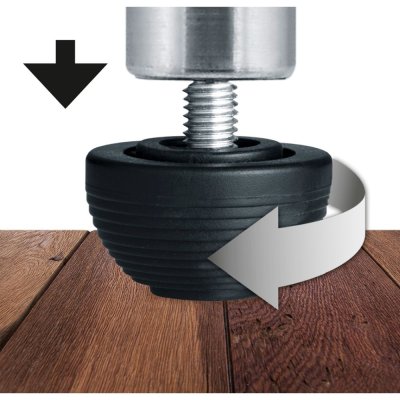

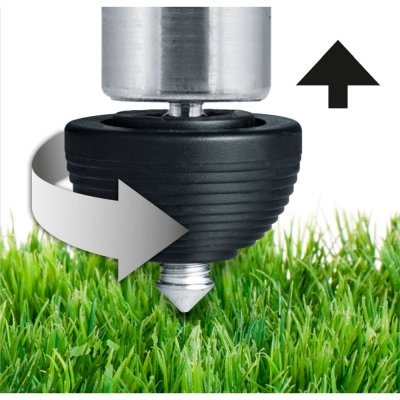

Easily adaptable to the ground surface thanks to combined rubber and steel tips

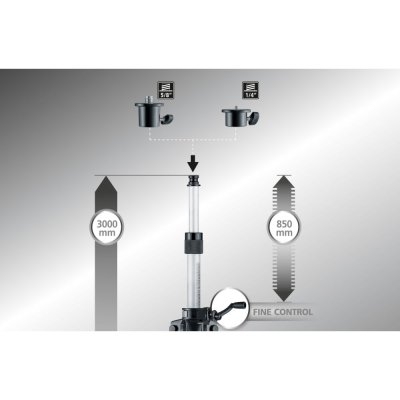

Crank height adjustment and telescopic tripod legs

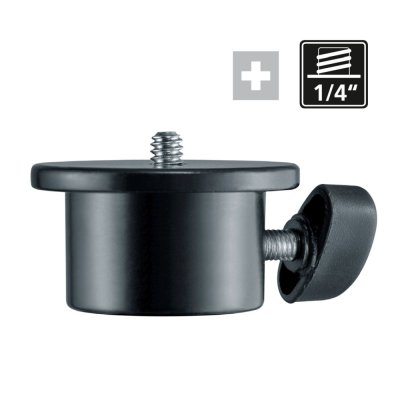

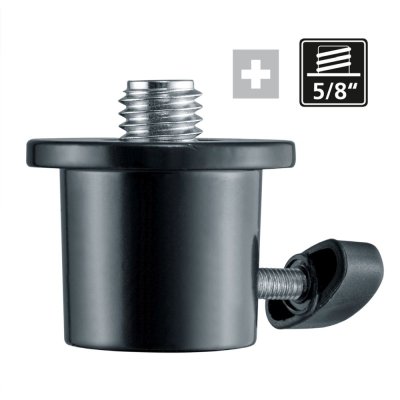

With adapter for mounting devices with 1/4" and 5/8" thread

Material
Aluminum
Max. Load Capacity
6 kg
Max. Height
3100 mm
Min. Height
980 mm
Tripod Connection
1/4" / 5/8" thread
Operating Conditions
-20°C … 60°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-20°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)
140 mm x 1000 mm x 140 mm
Weight
4300 g (ohne Zubehör)

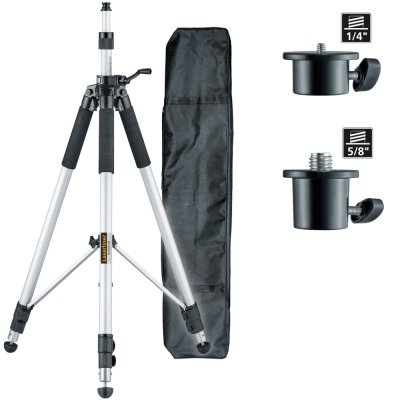

Scope of delivery: VarioStand L 300 cm
1/4” and 5/8” thread adapter
softbag
