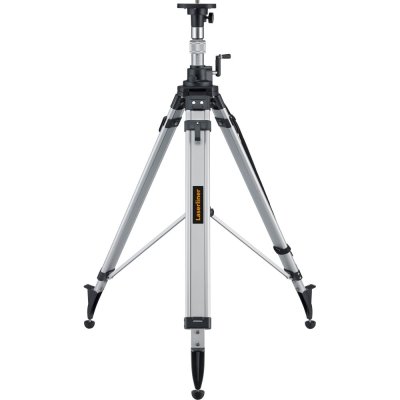

Crank Tripod 300 cm

Description: This robust crank tripod with 5/8” threaded adapter has an extremely long crank stroke (70 cm) which can be adjusted and locked without any play and is adjustable over a wide range. The combination of rubber and steel on the tips of the feet easily adapt to the surface. Other features include stable feet and steel chains.

Exact and reliable installation of laser measuring instruments
An extremely long crank stroke allows a large adjustment range
Crank stroke can be fixed and can be set without play
With 5/8” adapter
Easily adaptable to the ground surface thanks to combined rubber and steel tips
Strong steel feet
Steel chains

Material
Aluminum
Max. Load Capacity
8 kg
Max. Height
2950 mm
Min. Height
1290 mm
Tripod Connection
5/8" thread
Operating Conditions
-10°C … 50°C, Luftfeuchtigkeit max. 85% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions
-20°C … 70°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend
Dimensions (W x H x D)
220 mm x 1360 mm x 190 mm
Weight
8500 g (ohne Zubehör)

Scope of delivery: crank tripod P 300 cm
carrying strap
